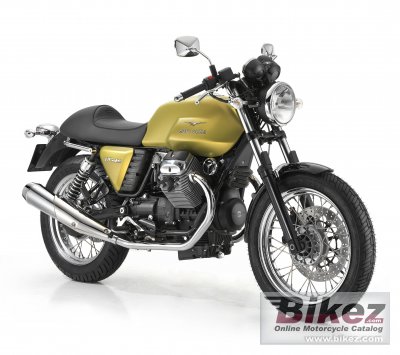

Guzzi V7 Cafe Classic
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Cafe Classic
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireLow, long and hunched over the suspensions, the V7 Sport made its first appearance in the market with a rather unusual chromatic combination, obtained with the "Legnano" green used for the upper structures contrasting with the red frame of the first 150 specimens assembled in the Moto Guzzi testing department using a CrMo tubular frame as well as some changes to distribution and ignition details with respect to the next versions which had a black coloured frame.
Informazioni generali
Tipologia
Classic
Cilindrata
744.0 cc (45.40 cubic inches)
Tipo motore
V2, four-stroke
Rapporto di compressione
9.6:1
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Weber-Marelli
Controllo alimentazione
Overhead Cams (OHC)
Sistema di lubrificazione
By lobes with pressure pump
Frizione
Dry single plate with flexible couplings
Impianto di scarico
Twin raised silencers. Three-way catalyzer with lambda probe.
Inclinazione cannotto di sterzo
27.5°
Avancorsa
109 mm (4.3 inches)
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
118 mm (4.6 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Peso a secco
182.0 kg (401.2 pounds)
Weight incl. oil, gas, etc
198.0 kg (436.5 pounds)
Altezza sella
805 mm (31.7 inches) If adjustable, lowest setting.
Altezza totale
1115 mm (43.9 inches)
Lunghezza totale
2185 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Altezza da terra
182 mm (7.2 inches)
Capacita carburante
17.00 litres (4.49 US gallons)
Capacita carburante di riserva
2.50 litres (0.66 US gallons)
Colori disponibili
Green, gray
Avviamento
Elettrico
Motore
Coppia
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 giri/min
Sospensioni
Sospensione anteriore
Marzocchi forks
Sospensione posteriore
Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers.
Telaio
Tipologia telaio
ALS steel tubular dismountable twin cradle
Ruote
Pneumatico anteriore
110/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters
Freno posteriore
Single disc. Bremo
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
