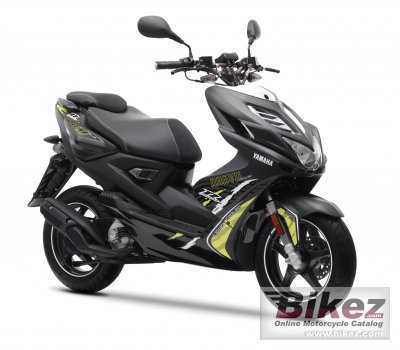

Aerox R Naked 50
Scrivi la tua esperienza su Yamaha Aerox R Naked 50
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWith its stripped-down supersport-type bodywork and exposed handlebars and instruments, the all-new Aerox R Naked has been built for pure fun and total freedom. And it has got to be the coolest way to get about - whether you´re in town or out in the countryside.
Informazioni generali
Categoria
Scooter
Cilindrata
49.2 cc (3.00 cubic inches)
Potenza
3.3 CV (2.4 kW)) @ 6750 giri/min
Rapporto di compressione
12.0:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Gurtner
Accensione
CDI
Sistema di lubrificazione
Separate lubrication
Trasmissione finale
V-Belt Automatic
Escursione anteriore
80 mm (3.1 inches)
Escursione posteriore
60 mm (2.4 inches)
Diametro
190 mm (7.5 inches)
Ruote
Black, five spoke
Weight incl. oil, gas, etc
97.0 kg (213.8 pounds)
Altezza sella
815 mm (32.1 inches) If adjustable, lowest setting.
Altezza totale
1155 mm (45.5 inches)
Lunghezza totale
1875 mm (73.8 inches)
Larghezza totale
725 mm (28.5 inches)
Altezza da terra
185 mm (7.3 inches)
Interasse
1275 mm (50.2 inches)
Capacita carburante
7.00 litres (1.85 US gallons)
Colori disponibili
Black/yellow
Avviamento
Electric & kick
Strumentazione
High-spec LCD instruments
Capacita di carico
Under-seat helmet storage for a full-face helmet.
Modifications compared to previous model
New dual seat with sports riding position.
Motore
Tipo motore
Single cylinder, two-stroke
Coppia
3.5 Nm (0.4 kgf-m or 2.6 ft.lbs) @ 6500 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork
Sospensione posteriore
Unit swing
Telaio
Tipologia telaio
Steel
Ruote
Pneumatico anteriore
130/60-13
Pneumatico posteriore
140/60-13
Freni
Freno anteriore
Single disc. Hydraulic
Freno posteriore
Single disc. Hydraulic
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
