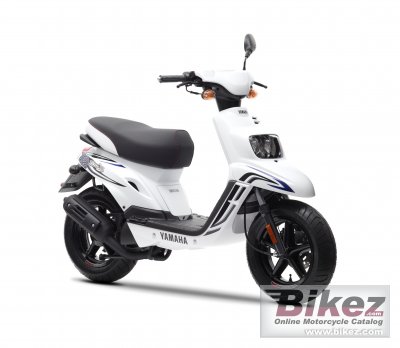

Bws 12Inch
Scrivi la tua esperienza su Yamaha Bws 12Inch
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireJump onboard and you´ll see that the BW´s 12inch is just as easy and fun to ride as the original. Its twist-and-go riding style makes use of a zippy 2-stoke 50cc engine and a hassle-free automatic transmission. Add to that a lightweight chassis, distinctive dual headlights and – of course – those big 12inch alloy wheels.
Informazioni generali
Categoria
Scooter
Cilindrata
49.2 cc (3.00 cubic inches)
Potenza
3.2 CV (2.4 kW)) @ 6500 giri/min
Rapporto di compressione
7.2:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor
Accensione
CDI
Sistema di lubrificazione
Separate lubrication
Escursione anteriore
70 mm (2.8 inches)
Escursione posteriore
70 mm (2.8 inches)
Diametro
180 mm (7.1 inches)
Diametro
110 mm (4.3 inches)
Ruote
Alloy wheels
Sella
Dual
Peso a secco
83.0 kg (183.0 pounds)
Rapporto potenza/peso
0.0388 CV/kg
Altezza sella
768 mm (30.2 inches) If adjustable, lowest setting.
Altezza totale
1052 mm (41.4 inches)
Lunghezza totale
1685 mm (66.3 inches)
Larghezza totale
690 mm (27.2 inches)
Altezza da terra
124 mm (4.9 inches)
Interasse
1172 mm (46.1 inches)
Capacita carburante
5.30 litres (1.40 US gallons)
Colori disponibili
Bianco
Avviamento
Electric & kick
Motore
Tipo motore
Single cylinder, two-stroke
Coppia
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork
Sospensione posteriore
Unit swing
Ruote
Pneumatico anteriore
120/70-12
Pneumatico posteriore
130/70-12
Freni
Freno anteriore
Disco singolo
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
