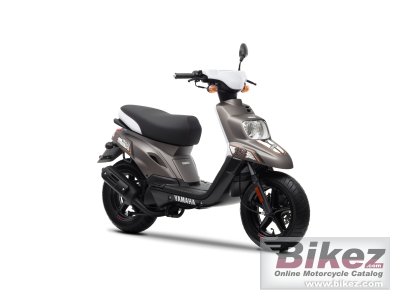

Bws 12 Inch
Scrivi la tua esperienza su Yamaha Bws 12 Inch
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWhen the going gets rougher, you still want to have fun traveling from A to B. That´s why we designed the BW´s 12inch – a bigger wheeled scooter that´s just as enjoyable to ride as the original BW´s.
Informazioni generali
Tipologia
Scooter
Cilindrata
49.2 cc (3.00 cubic inches)
Tipo motore
Single cylinder, two-stroke
Potenza
3.2 CV (2.4 kW)) @ 6500 giri/min
Rapporto di compressione
7.2:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Gurtner
Accensione
CDI
Sistema di lubrificazione
Separate lubrication
Escursione anteriore
70 mm (2.8 inches)
Escursione posteriore
70 mm (2.8 inches)
Diametro
180 mm (7.1 inches)
Diametro
110 mm (4.3 inches)
Ruote
Alloy wheels
Sella
Dual seat with passenger grab handles
Weight incl. oil, gas, etc
83.0 kg (183.0 pounds)
Altezza sella
768 mm (30.2 inches) If adjustable, lowest setting.
Altezza totale
1052 mm (41.4 inches)
Lunghezza totale
1685 mm (66.3 inches)
Larghezza totale
690 mm (27.2 inches)
Altezza da terra
124 mm (4.9 inches)
Interasse
1174 mm (46.2 inches)
Capacita carburante
5.30 litres (1.40 US gallons)
Colori disponibili
Frozen titanium
Avviamento
Electric & kick
Fari
Twin front lights
Motore
Coppia
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork
Sospensione posteriore
Unit swing
Ruote
Pneumatico anteriore
120/70-12
Pneumatico posteriore
130/70-12
Freni
Freno anteriore
Disco singolo
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
