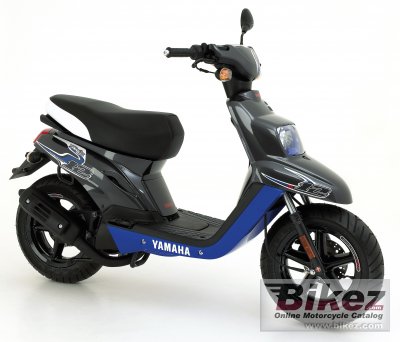

Bws 12 Inch
Scrivi la tua esperienza su Yamaha Bws 12 Inch
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireStand out and be different with BW'S 12", the tough and chunky limited edition take on the unbeatable BW'S. There's nothing quite like that funky fat tyre style, up to the worst city streets with its superior grip, and for the extra demanding BW'S 12" rider there's a gas rear shock for even better handling.
Informazioni generali
Categoria
Scooter
Cilindrata
49.0 cc (2.99 cubic inches)
Rapporto di compressione
7.2:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Accensione
Electronic (C.D.I.)
Sistema di lubrificazione
Seperate lubrification
Frizione
Automatic centrifugal
Diametro
180 mm (7.1 inches)
Diametro
110 mm (4.3 inches)
Peso a secco
75.0 kg (165.3 pounds)
Rapporto potenza/peso
0.0428 CV/kg
Altezza sella
768 mm (30.2 inches) If adjustable, lowest setting.
Altezza totale
1051 mm (41.4 inches)
Lunghezza totale
1685 mm (66.3 inches)
Larghezza totale
754 mm (29.7 inches)
Altezza da terra
124 mm (4.9 inches)
Interasse
1172 mm (46.1 inches)
Capacita carburante
5.30 litres (1.40 US gallons)
Avviamento
Electric & kick
Motore
Tipo motore
Single cylinder, two-stroke
Potenza
3.2 CV (2.3 kW)) @ 6500 giri/min
Coppia
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Hydraulic and telescopic fork
Sospensione posteriore
Hydraulic unit swing
Telaio
Tipologia telaio
Front suspension system
Ruote
Pneumatico anteriore
120/70-12
Pneumatico posteriore
130/70-12
Freni
Freno anteriore
Disco singolo
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
