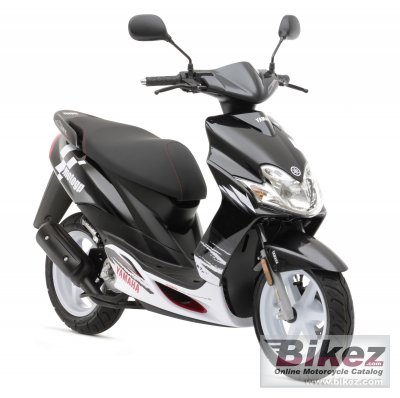

Jogrr Motogp
Scrivi la tua esperienza su Yamaha Jogrr Motogp
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireOfficial MotoGP paddock scooter with exclusive paint and graphics High-tech liquid-cooled 50cc two-stroke engine Nippy acceleration and brilliant all-round performance Fully automatic transmission – no gears to bother about Rugged, asymmetric steel chassis that's built to really last Dual seat, passenger footpegs and grabrail as standard Attractive digital/analogue instrument panel Underseat locker looks after one full-face helmet Electric starter and kick starter – the best of both worlds Sporty suspension and short wheelbase for superb handling and steering Classy six spoke alloy 12in wheels with chunky tyres 190mm front disc brake for great stopping power Lateral air scoops below footboard Catalyser exhaust (EU1) Flat tunnel-less footboard 5-litre fuel tank Wide range of accessories
Informazioni generali
Tipologia
Scooter
Cilindrata
49.0 cc (2.99 cubic inches)
Tipo motore
Single cylinder, two-stroke
Potenza
2.8 CV (2.1 kW)) @ 7500 giri/min
Rapporto di compressione
11.4:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Accensione
Electric (CDI)
Sistema di lubrificazione
Separate lubrication
Frizione
Automatic centrifugal
Diametro
190 mm (7.5 inches)
Diametro
110 mm (4.3 inches)
Peso a secco
79.0 kg (174.2 pounds)
Rapporto potenza/peso
0.0359 CV/kg
Altezza sella
770 mm (30.3 inches) If adjustable, lowest setting.
Altezza totale
1065 mm (41.9 inches)
Lunghezza totale
1740 mm (68.5 inches)
Larghezza totale
675 mm (26.6 inches)
Altezza da terra
132 mm (5.2 inches)
Interasse
1210 mm (47.6 inches)
Capacita carburante
5.50 litres (1.45 US gallons)
Avviamento
Electric & kick
Motore
Coppia
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 giri/min
Sospensioni
Sospensione anteriore
Hydraulic and telescopic fork
Sospensione posteriore
Hydraulic unit swing
Ruote
Pneumatico anteriore
110/70-12
Pneumatico posteriore
130/70-12
Freni
Freno anteriore
Disco singolo
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
