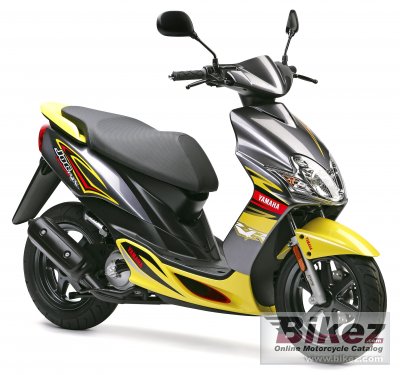

Jog Rr
Scrivi la tua esperienza su Yamaha Jog Rr
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensirePractical city transport with a sporting edge? It sounds unlikely, until you meet Jog RR, for the rider who wants it all! The style is stunning, from the stand-out front light cluster to the integrated rear lights, and practical too, with sufficient storage for a full face helmet and room for a passenger. But with its horizontal air intake and two-stroke engine with liquid-cooling, this is a scooter with a true sporting edge, offering stable and accurate handling from its 12" wheels and firm suspension.
Informazioni generali
Categoria
Scooter
Cilindrata
49.0 cc (2.99 cubic inches)
Rapporto di compressione
11.4:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Accensione
Electric (CDI)
Sistema di lubrificazione
Separate lubrication
Frizione
Automatic centrifugal
Diametro
190 mm (7.5 inches)
Diametro
110 mm (4.3 inches)
Peso a secco
77.9 kg (171.7 pounds)
Rapporto potenza/peso
0.0365 CV/kg
Altezza sella
770 mm (30.3 inches) If adjustable, lowest setting.
Altezza totale
1065 mm (41.9 inches)
Lunghezza totale
1740 mm (68.5 inches)
Larghezza totale
675 mm (26.6 inches)
Altezza da terra
132 mm (5.2 inches)
Interasse
1210 mm (47.6 inches)
Capacita carburante
5.50 litres (1.45 US gallons)
Avviamento
Electric & kick
Motore
Tipo motore
Single cylinder, two-stroke
Potenza
2.8 CV (2.1 kW)) @ 7500 giri/min
Coppia
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 giri/min
Sospensioni
Sospensione anteriore
Hydraulic and telescopic fork
Sospensione posteriore
Single Shock
Telaio
Tipologia telaio
Front suspension system
Ruote
Pneumatico anteriore
110/70-12
Pneumatico posteriore
130/70-12
Freni
Freno anteriore
Disco singolo
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
