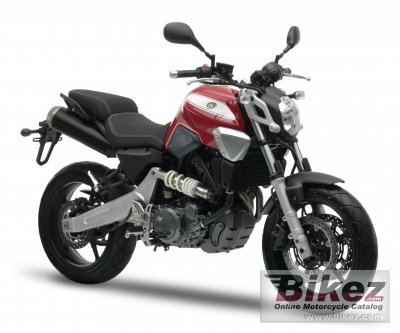

Accedi per recensireMT-03 is a style icon built to bring big fun to the city and to the curves with a light, compact, fuel-injected engine that's full of power for instant thrust at any revs, plus a short-wheelbase chassis with focused centre of gravity that allows remarkable control and excellent traction on all kinds of roads.
Informazioni generali
Categoria
Naked bike
Cilindrata
660.0 cc (40.27 cubic inches)
Rapporto di compressione
10.0:1
Alesaggio x corsa
100.0 x 84.0 mm (3.9 x 3.3 inches)
Sistema di alimentazione
Injection
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Accensione
TCI
Sistema di lubrificazione
Coppa secca
Frizione
Wet, multiple disc
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
117 mm (4.6 inches)
Diametro
298 mm (11.7 inches)
Diametro
245 mm (9.6 inches)
Peso a secco
174.5 kg (384.7 pounds)
Rapporto potenza/peso
0.2712 CV/kg
Altezza sella
805 mm (31.7 inches) If adjustable, lowest setting.
Altezza totale
1115 mm (43.9 inches)
Lunghezza totale
2070 mm (81.5 inches)
Larghezza totale
860 mm (33.9 inches)
Altezza da terra
200 mm (7.9 inches)
Interasse
1525 mm (60.0 inches)
Capacita carburante
15.00 litres (3.96 US gallons)
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Potenza
47.3 CV (34.5 kW))
Coppia
56.2 Nm (5.7 kgf-m or 41.5 ft.lbs) @ 5730 giri/min
Sospensioni
Sospensione anteriore
Telescopic forks
Sospensione posteriore
Swingarm
Telaio
Tipologia telaio
Steel tube truss diamond
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
160/60-17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
