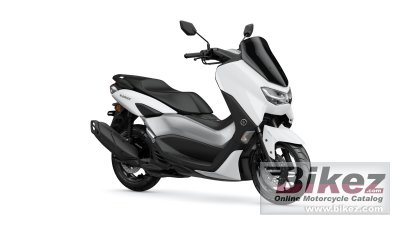

Nmax 125
Scrivi la tua esperienza su Yamaha Nmax 125
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireNow is the time to re-consider the way you move around the city, and the NMAX 125 is Yamaha's vision of personal new mobility. Driven by a lively and economical Blue Core 125cc engine that can take you around 300 km on a tank of fuel, this easy-to-ride commuter scooter comes with premium finishing and a high Specifica at an affordable price.
Informazioni generali
Categoria
Scooter
Cilindrata
125.0 cc (7.63 cubic inches)
Potenza
12.1 CV (8.8 kW)) @ 8000 giri/min
Rapporto di compressione
11.2:1
Alesaggio x corsa
52.0 x 58.7 mm (2.0 x 2.3 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Accensione
TCI
Sistema di lubrificazione
Wet sump
Trasmissione finale
V-Belt Automatic
Consumo carburante
2.20 litres/100 km (45.5 km/l or 106.92 mpg)
Emissioni serra
51.0 CO2 g/km. (CO2 - emissione di anidride carbonica)
Dettagli emissioni
Euro 5
Escursione anteriore
100 mm (3.9 inches)
Escursione posteriore
85 mm (3.3 inches)
Diametro
230 mm (9.1 inches)
Weight incl. oil, gas, etc
131.0 kg (288.8 pounds)
Altezza sella
765 mm (30.1 inches) If adjustable, lowest setting.
Altezza totale
1160 mm (45.7 inches)
Lunghezza totale
1935 mm (76.2 inches)
Larghezza totale
740 mm (29.1 inches)
Altezza da terra
125 mm (4.9 inches)
Interasse
1340 mm (52.8 inches)
Capacita carburante
7.10 litres (1.88 US gallons)
Colori disponibili
Ruby Red, Deep Blue, Milky White, Power Grey
Avviamento
Elettrico
Strumentazione
LCD instruments
Fari
LED headlights
Motore
Tipo motore
Monocilindrico, quattro tempi
Coppia
11.2 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork
Sospensione posteriore
Unit Swing, monoshock
Telaio
Tipologia telaio
Underbone
Ruote
Pneumatico anteriore
110/70-13
Pneumatico posteriore
130/70-13
Freni
Freno anteriore
Single disc. Hydraulic. ABS.
Freno posteriore
Single disc. ABS.
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
