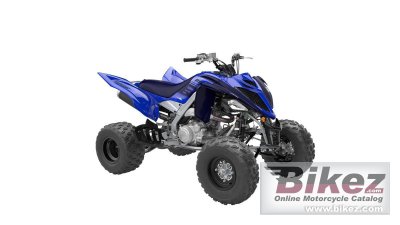

Raptor 700R
Scrivi la tua esperienza su Yamaha Raptor 700R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe YFZ-inspired handling of the Raptor 700R is incredible to experience while blasting through the woods. Thanks to the 9.1 inches of front travel and 10.1 inches out back, the trail bumps smooth out while the rider keeps things under control. With the combination of power, solid handling and a great suspension, this machine has to be experienced to be fully appreciated.
Informazioni generali
Categoria
ATV
Prezzo da nuova
US$ 10299. MSRP depends on country, taxes, accessories, etc.
Cilindrata
686.0 cc (41.86 cubic inches)
Rapporto di compressione
10.0:1
Alesaggio x corsa
102.0 x 84.0 mm (4.0 x 3.3 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Yamaha Fuel Injection (YFI), 44mm
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Accensione
TCI
Sistema di lubrificazione
Wet sump
Frizione
Wet multiplate clutch
Trasmissione finale
X-ring chain, 2WD, reverse.
Escursione anteriore
230 mm (9.1 inches)
Escursione posteriore
256 mm (10.1 inches)
Diametro
161 mm (6.3 inches)
Diametro
200 mm (7.9 inches)
Ruote
Maxxis tires.
Weight incl. oil, gas, etc
191.4 kg (422.0 pounds)
Altezza sella
830 mm (32.7 inches) If adjustable, lowest setting.
Altezza totale
1115 mm (43.9 inches)
Lunghezza totale
1845 mm (72.6 inches)
Larghezza totale
1155 mm (45.5 inches)
Altezza da terra
241 mm (9.5 inches)
Interasse
1280 mm (50.4 inches)
Capacita carburante
11.00 litres (2.91 US gallons)
Colori disponibili
Team Yamaha Blue
Avviamento
Elettrico
Fari
Dual 30W Krypton headlights and LED brake light
Garanzia di fabbrica
6 Month Limited Warranty
Motore
Tipo motore
Monocilindrico, quattro tempi
Sospensioni
Sospensione anteriore
Independent double wishbone w/piggyback high/low-speed compression, rebound and threaded preload adjustment
Sospensione posteriore
Cast aluminum swingarm w/piggyback high/low-speed compression, rebound and threaded preload adjustment
Ruote
Pneumatico anteriore
22/7-10
Pneumatico posteriore
20/10-9
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
