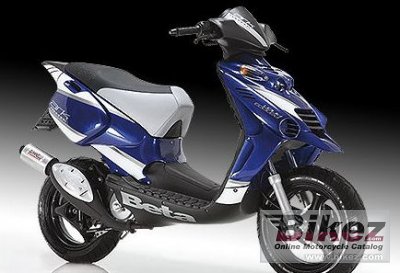

Ark 50 Paddock
Scrivi la tua esperienza su Beta Ark 50 Paddock
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireBeing airy and entertaining, Ark is the proposal by Beta for all the riders in search of a practical, reliable and dynamic scooter. Available in various settings and colour mix, with racing or classic design, liquid or air cooled, Ark is the right scooter for anyone who want to live the road in fun and in freedom, adding a witty touch of colour to daily routine. Its particular look does not hide Ark's sporting and biting attitude: high mudguards, off-road flavoured flanks and brawny muffler are just some of the details giving a typically racing look to a vehicle designated for a daily use. Supplied with a solid frame and easy to handle even during the strongest breakings, Ark grants the irregularities filtration to an hydraulic front fork and to an adjustable rear shock absorber which guarantee full grip and stability. Animated by a 2 strokes engines, powerful and steady, Ark is absolutely versatile: born with an Off-road DNA, typically Beta, it doesn't scorn the asphalt and it can mount both slick or off-road tyres. A range of accessories is available to enrich the current equipment and to make the ride more delightful and handy: a practical windshield protecting the driver from bad weather conditions, a side stand and a classic carrier, inevitable to run the daily errands.
Informazioni generali
Tipologia
Scooter
Cilindrata
49.0 cc (2.99 cubic inches)
Tipo motore
Single cylinder, two-stroke
Rapporto di compressione
12.0:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHVA 12
Accensione
Electronic Ducati 12V - 60W
Sistema di lubrificazione
With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil)
Frizione
Dry automatic centrifugal type
Escursione anteriore
32 mm (1.3 inches)
Diametro
190 mm (7.5 inches)
Peso a secco
88.0 kg (194.0 pounds)
Altezza totale
830 mm (32.7 inches)
Lunghezza totale
1905 mm (75.0 inches)
Altezza da terra
215 mm (8.5 inches)
Interasse
1740 mm (68.5 inches)
Capacita carburante
7.50 litres (1.98 US gallons)
Capacita carburante di riserva
1.30 litres (0.34 US gallons)
Colori disponibili
Blue, Yellow
Sospensioni
Sospensione anteriore
Hydraulic fork with ø32 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
Acciaio tubolare
Ruote
Pneumatico anteriore
130/60-13
Pneumatico posteriore
130/60-13
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
