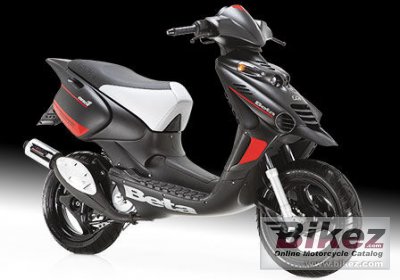

Ark 50 One!
Scrivi la tua esperienza su Beta Ark 50 One!
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe question is: what can come out from the fusion between a scooter, born with an Off-Road DNA, and a raging Enduro 4-stroke? You can get the answer just mounting on the brand new Beta Ark RR Racing. The aggressive red flou coloring, and the racing graphics inspired by the RR Enduro 4t riding the World Enduro Championship, give the right energy dose to a sporty and aggressive scooter. Robust frame, brilliant engine, powerful double disc braking system, hydraulic fork, adjustable monoshock and… all the guts courtesy of a ready to race enduro bike: that's Ark RR Racing successful key!
Informazioni generali
Categoria
Scooter
Cilindrata
49.0 cc (2.99 cubic inches)
Rapporto di compressione
12.0:1
Alesaggio x corsa
40.0 x 39.2 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHVA 12
Accensione
Electronic Ducati 12V - 60W
Sistema di lubrificazione
With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil)
Frizione
Dry automatic centrifugal type
Escursione anteriore
32 mm (1.3 inches)
Diametro
190 mm (7.5 inches)
Peso a secco
88.0 kg (194.0 pounds)
Altezza totale
830 mm (32.7 inches)
Lunghezza totale
1905 mm (75.0 inches)
Altezza da terra
215 mm (8.5 inches)
Interasse
1740 mm (68.5 inches)
Capacita carburante
7.50 litres (1.98 US gallons)
Capacita carburante di riserva
1.30 litres (0.34 US gallons)
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø32 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
Acciaio tubolare
Ruote
Pneumatico anteriore
130/60-13
Pneumatico posteriore
130/60-13
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
Automatic
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
