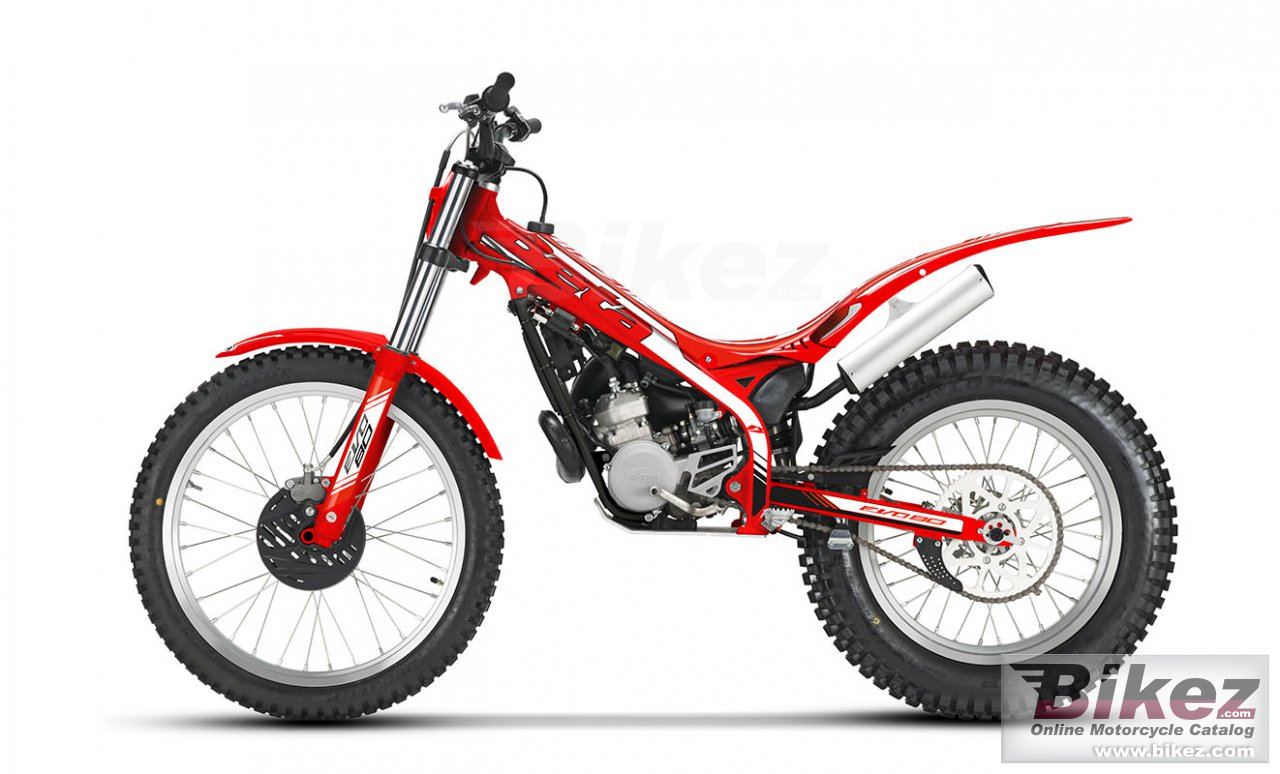

Evo 80 Senior
Scrivi la tua esperienza su Beta Evo 80 Senior
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe Senior version is an intermediate step between the smaller bike and the bigger 125 model, sharing the same wheel size with the latter while keeping the intuitive manageability of the 80 cc engine.
Informazioni generali
Categoria
Trial
Cilindrata
79.6 cc (4.86 cubic inches)
Rapporto di compressione
14.7:1
Alesaggio x corsa
48.0 x 44.0 mm (1.9 x 1.7 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHBG 21
Accensione
HIDRIA
Sistema di lubrificazione
Mix with fuel 1,5 % synthetic oil
Frizione
Wet multi-disc
Escursione anteriore
165 mm (6.5 inches)
Escursione posteriore
150 mm (5.9 inches)
Diametro
185 mm (7.3 inches)
Diametro
150 mm (5.9 inches)
Altezza sella
678 mm (26.7 inches) If adjustable, lowest setting.
Altezza totale
1127 mm (44.4 inches)
Lunghezza totale
1925 mm (75.8 inches)
Larghezza totale
815 mm (32.1 inches)
Altezza da terra
325 mm (12.8 inches)
Interasse
1230 mm (48.4 inches)
Capacita carburante
2.50 litres (0.66 US gallons)
Capacita carburante di riserva
0.50 litres (0.13 US gallons)
Colori disponibili
Red/White
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with 38 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
Steel
Ruote
Pneumatico anteriore
2.75-21
Pneumatico posteriore
4-18
Freni
Freno anteriore
Single disc. 2 piston caliper
Freno posteriore
Single disc. 2 opposed pistons
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
