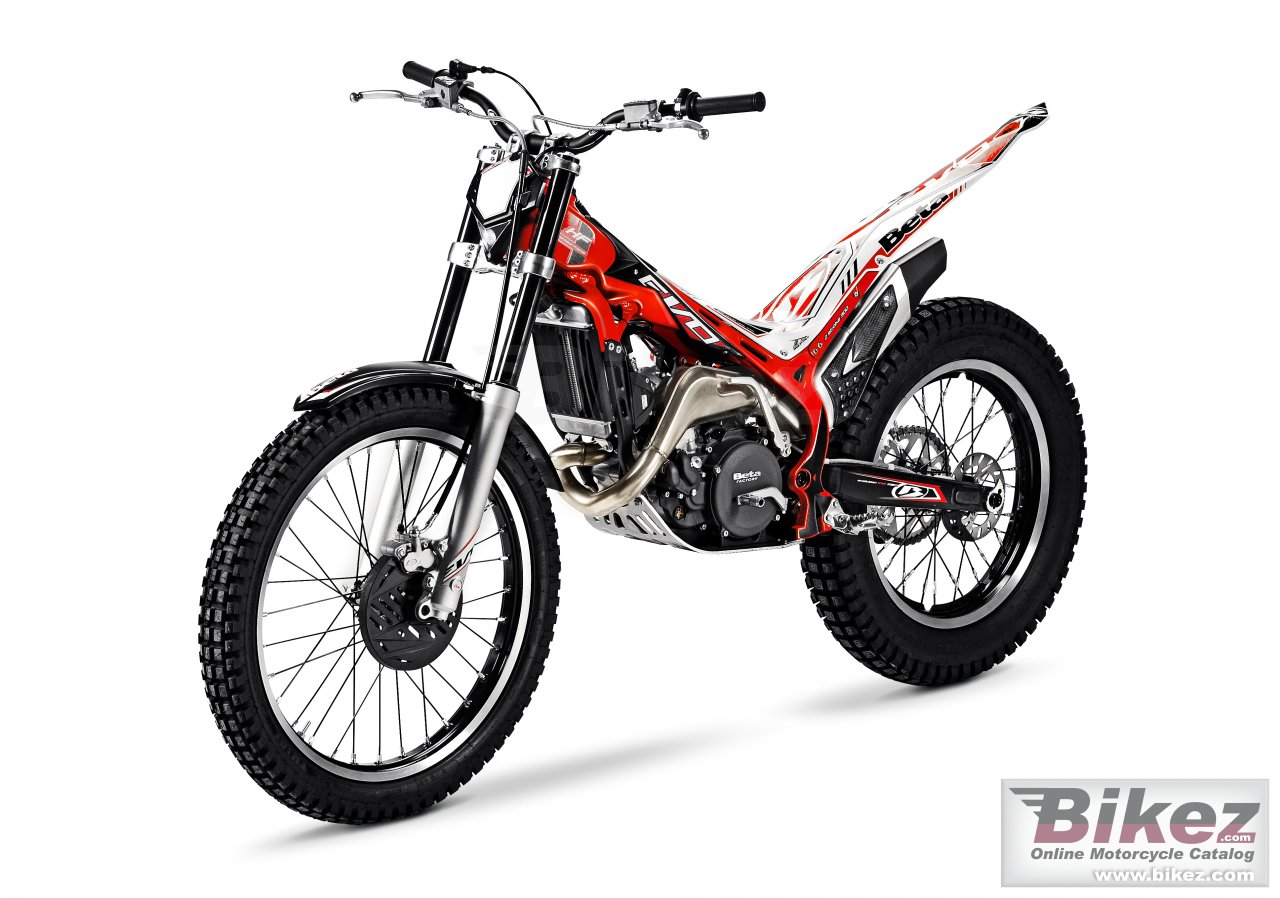

Evo 300 2T
Scrivi la tua esperienza su Beta Evo 300 2T
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe new 2013 EVO is in fact the first trial bike in the World to use a frame where the main section is obtained by hydroforming with all the advantages that this technology allows. Ease of maintenance, friendly riding, and ergonomics are further improved on the 2013's by raising the bar to an even higher level of quality in the EVO family.
Informazioni generali
Categoria
Trial
Cilindrata
296.4 cc (18.09 cubic inches)
Dettagli motore
Lamellar induction in the crankcase
Rapporto di compressione
10.2:1
Alesaggio x corsa
79.0 x 60.5 mm (3.1 x 2.4 inches)
Sistema di alimentazione
Carburettor. Keihin PWK ø 28mm
Sistema di lubrificazione
1.5% oil mixture
Frizione
Wet multi-disc clutch with cush-drive rubber
Escursione anteriore
165 mm (6.5 inches)
Escursione posteriore
180 mm (7.1 inches)
Diametro
185 mm (7.3 inches)
Diametro
165 mm (6.5 inches)
Peso a secco
67.0 kg (147.7 pounds)
Altezza sella
660 mm (26.0 inches) If adjustable, lowest setting.
Altezza totale
1120 mm (44.1 inches)
Lunghezza totale
1990 mm (78.3 inches)
Larghezza totale
1115 mm (43.9 inches)
Interasse
1305 mm (51.4 inches)
Capacita carburante
2.80 litres (0.74 US gallons)
Capacita carburante di riserva
0.50 litres (0.13 US gallons)
Colori disponibili
Red/white/black
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø38 mm shaft
Sospensione posteriore
Monoshock
Telaio
Tipologia telaio
Single wave hydroformed aluminium beam
Ruote
Pneumatico anteriore
2.75-21
Pneumatico posteriore
4.00-18
Freni
Freno anteriore
Single disc. Four-piston calipers.
Freno posteriore
Single disc. Two-piston calipers.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
