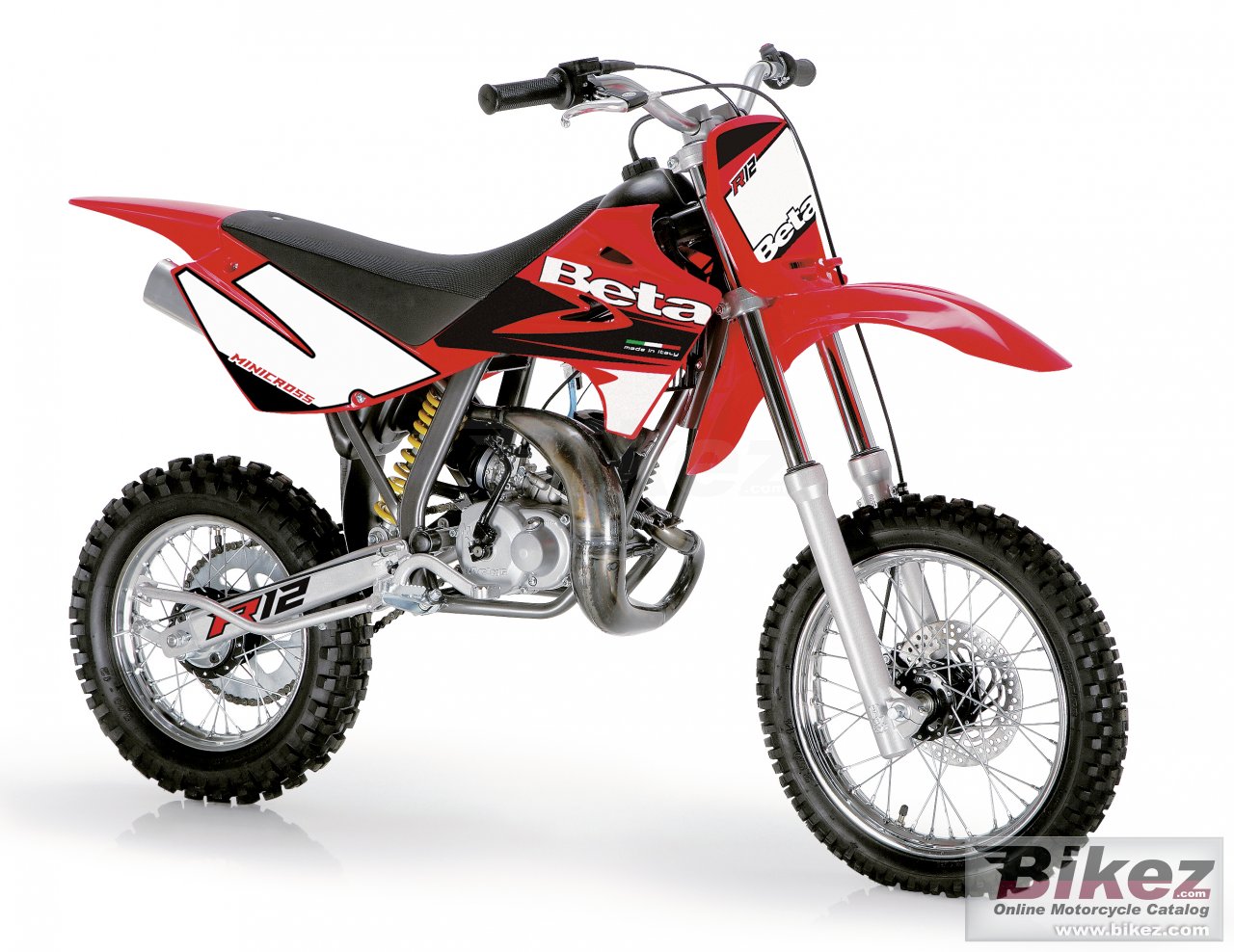

Minicross R 12
Scrivi la tua esperienza su Beta Minicross R 12
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireEveryday, all around the world, there are many kids trying to make their first experiences on a dirt-track, learning how to face a curve or enjoying their first exciting high jumps, dreaming of being an Off-road Star. But Beta Minicross is not only competition: beyond the will to win the most important thing is doing a sport to grow up with fun. Minicross is also a vehicle to improve safely the children's concentration, balance and even consciousness and control of their own body. Advisable for kids aged 8/12, the 12"/15" wheeled version enable the young riders to refine their skills. Absolutely handy and pleasant, thanks to its reliable Beta engine air cooled, single-speed, R 12 can rely on prompt drum brakes and a solid Ø 30 mm front fork to face the first obstacle in all safety
Informazioni generali
Categoria
Minibike, cross
Cilindrata
49.0 cc (2.99 cubic inches)
Rapporto di compressione
12.5:1
Alesaggio x corsa
39.5 x 40.0 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor. Dell´Orto SHA 14 - 12L
Frizione
Wet automatic centrifugal type
Diametro
90 mm (3.5 inches)
Peso a secco
46.0 kg (101.4 pounds)
Altezza sella
740 mm (29.1 inches) If adjustable, lowest setting.
Altezza totale
990 mm (39.0 inches)
Lunghezza totale
1580 mm (62.2 inches)
Larghezza totale
670 mm (26.4 inches)
Altezza da terra
280 mm (11.0 inches)
Interasse
1100 mm (43.3 inches)
Capacita carburante
2.00 litres (0.53 US gallons)
Capacita carburante di riserva
0.30 litres (0.08 US gallons)
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Mechanical fork with ø30 mm shaft
Telaio
Tipologia telaio
Steel tubing
Ruote
Pneumatico anteriore
2.5-15
Pneumatico posteriore
3-12
Freni
Freno anteriore
Freno a espansione (a tamburo)
Freno posteriore
Freno a espansione (a tamburo)
Trasmissione
Cambio
Automatic
Raffreddamento
Sistema di raffreddamento
Aria
