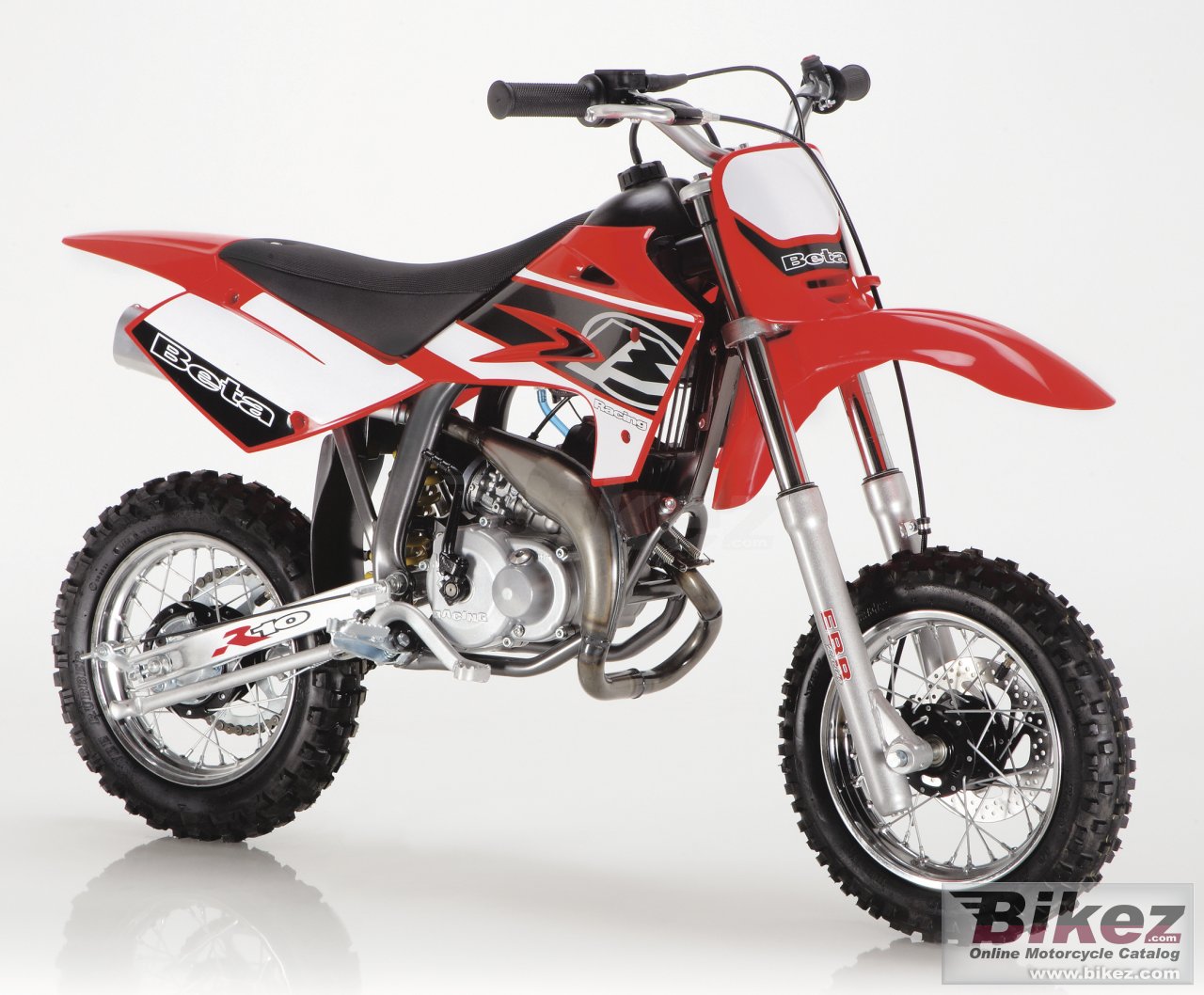

Minicross R 10
Scrivi la tua esperienza su Beta Minicross R 10
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireEveryday, all around the world, there are many kids trying to make their first experiences on a dirt-track, learning how to face a curve or enjoying their first exciting high jumps, dreaming of being an Off-road Star. But Beta Minicross is not only competition: beyond the will to win the most important thing is doing a sport to grow up with fun. Minicross is also a vehicle to improve safely the children's concentration, balance and even consciousness and control of their own body. To start the young riders aged 4/7, Beta designed a vehicle with 10" wheels, moved by a little 50cc engine, single-speed, enough brisk and prompt for the first trips in the dirt-tracks. The drum brakes guarantee quick and good stopping, while the readiness of the fork and rear shock nullify the ground asperities: MX10 is safety and fun!
Informazioni generali
Categoria
Minibike, cross
Cilindrata
49.0 cc (2.99 cubic inches)
Rapporto di compressione
12.5:1
Alesaggio x corsa
39.5 x 40.0 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor. Dell´Orto SHA 14 - 12L
Accensione
Electronic Selettra
Sistema di lubrificazione
With fuel 1,5% (with synthetic oil)
Frizione
Wet automatic centrifugal type
Escursione anteriore
30 mm (1.2 inches)
Peso a secco
37.5 kg (82.7 pounds)
Altezza sella
620 mm (24.4 inches) If adjustable, lowest setting.
Altezza totale
840 mm (33.1 inches)
Lunghezza totale
1290 mm (50.8 inches)
Larghezza totale
590 mm (23.2 inches)
Altezza da terra
240 mm (9.4 inches)
Interasse
905 mm (35.6 inches)
Capacita carburante
2.00 litres (0.53 US gallons)
Capacita carburante di riserva
0.30 litres (0.08 US gallons)
Colori disponibili
Rosso
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Mechanical fork with ø30 mm shaft
Telaio
Tipologia telaio
Steel tubing
Ruote
Pneumatico anteriore
2.50-10
Pneumatico posteriore
2.50-10
Freni
Freno anteriore
Expanding brake (drum brake). Mechanical drive drum ø66 mm
Freno posteriore
Expanding brake (drum brake). Mechanical drive drum ø90 mm
Trasmissione
Cambio
Automatic
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
