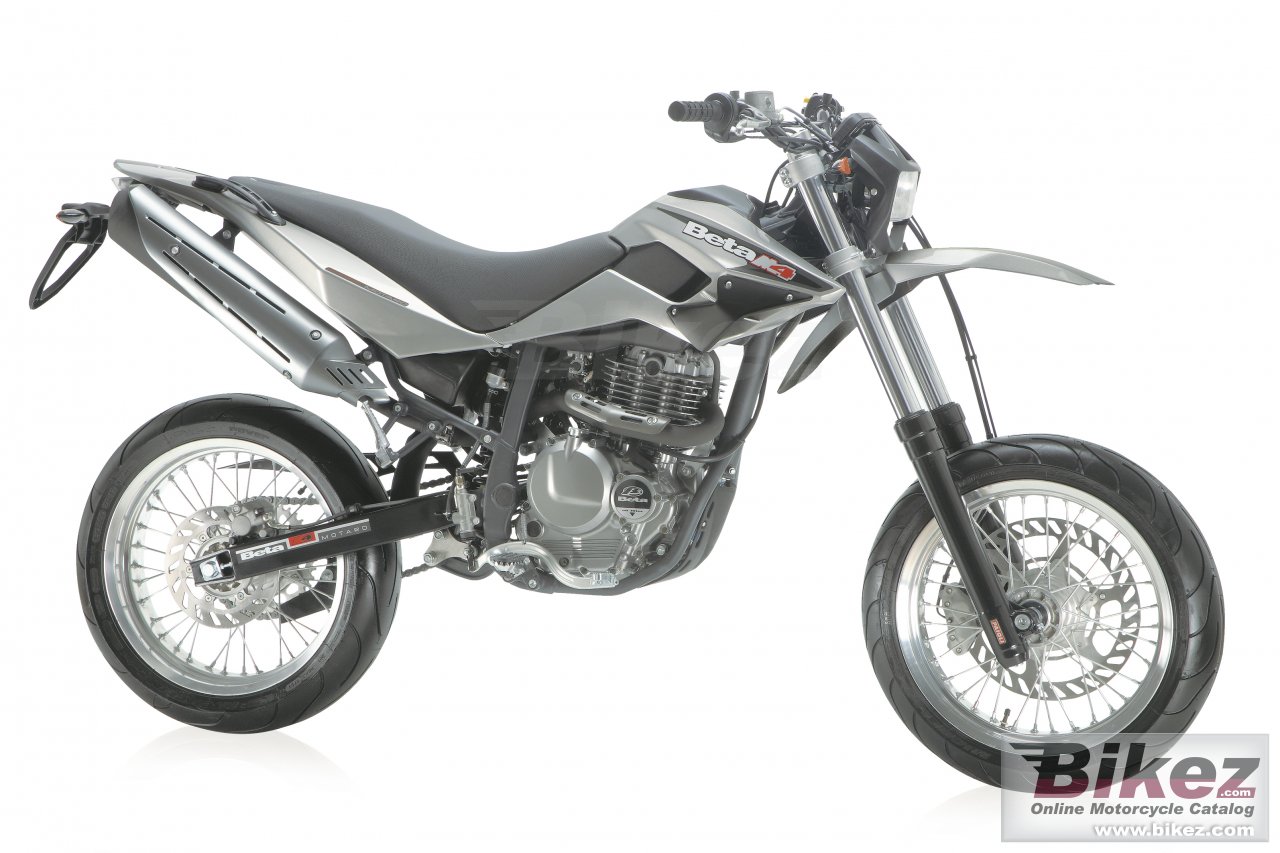

Accedi per recensireThe new M4 is good not only for who enter the two-wheeled universe for the first time (her power below 25 kW makes her suitable to the newly-licensed) but also for all the drivers who can't stand heavy and little handy bikes, longing for an original and absolutely fun motorbike. Light as a bike, with a low barycentre and off-road motorbike size she guarantees incomparable ease of handling and control. Her catlike agility and grip fear no comparison and allow you to slip off the urban jungle with great immediacy and fun: the brand new M4 is capable to make things tricky for her rivals, whatever be their displacement. If the daily urban transfers becomes fun, when riding a M4, try to imagine the week-end trips: facing country or mountain winding roads will be her specialty! Great character and aesthetic originality thanks to an innovative design revealing lightness and energy even at first glance. Slender lines, aggressive and strongly distinctive makes M4 a really fresh and airy proposal not only for her shape but also for her substance. 4-stroke engine: great lightness, extreme familiarity and guaranteed reliability are its best weapons, but don't forget that consumptions and maintenance costs are extremely low… what an eternal engine! You can't be insensitive to the brand new
Informazioni generali
Categoria
Super motard
Cilindrata
349.0 cc (21.30 cubic inches)
Rapporto di compressione
9.5:1
Alesaggio x corsa
79.0 x 71.2 mm (3.1 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Carburettor. Mikuni BST 33
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Sistema di lubrificazione
forced with pump
Frizione
Wet multi-disc clutch
Diametro
310 mm (12.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
133.0 kg (293.2 pounds)
Altezza sella
870 mm (34.3 inches) If adjustable, lowest setting.
Altezza totale
1220 mm (48.0 inches)
Lunghezza totale
2160 mm (85.0 inches)
Larghezza totale
860 mm (33.9 inches)
Altezza da terra
305 mm (12.0 inches)
Interasse
1410 mm (55.5 inches)
Capacita carburante
10.50 litres (2.77 US gallons)
Capacita carburante di riserva
3.00 litres (0.79 US gallons)
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Sospensioni
Sospensione anteriore
Hydraulic fork with ø46 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
steel double cradle frame
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
150/60-17
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Raffreddamento
Sistema di raffreddamento
Aria
