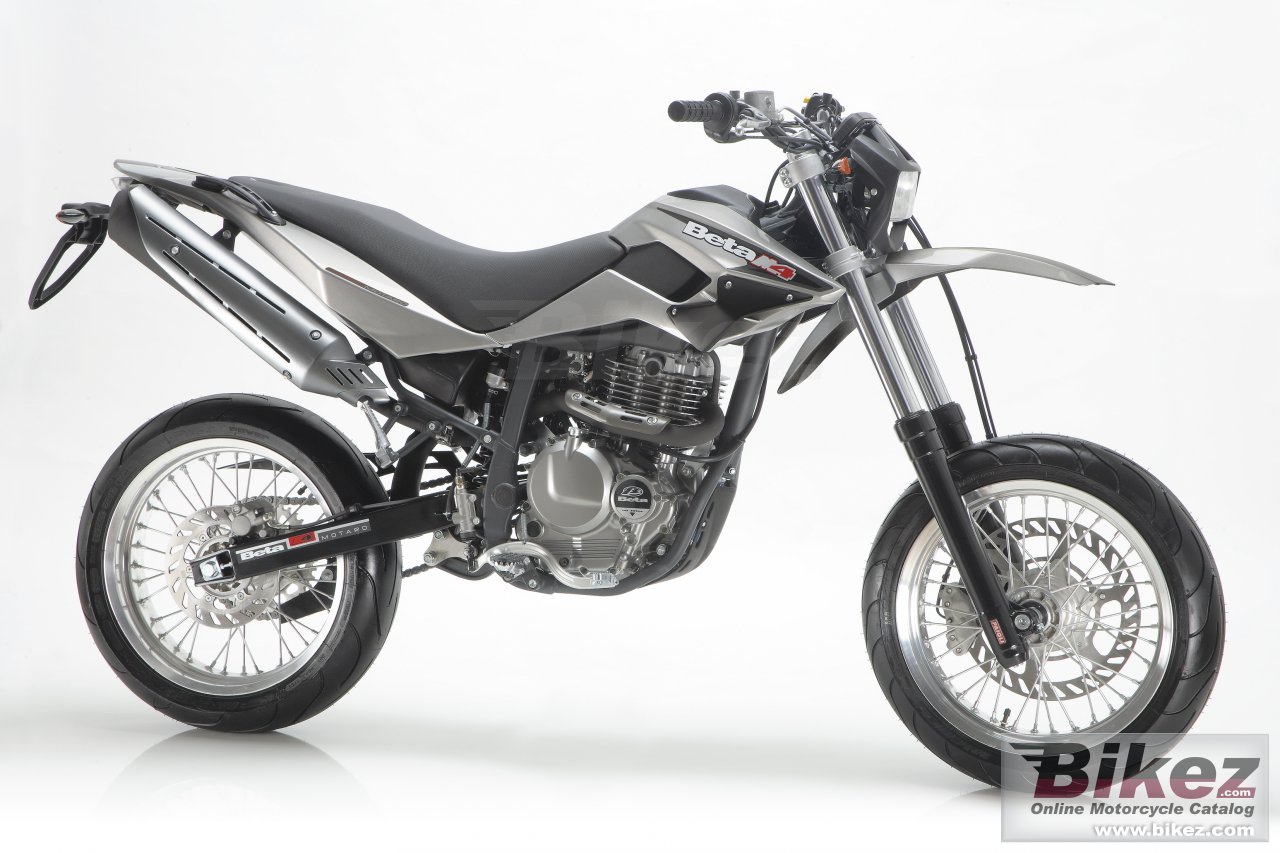

M4
Scrivi la tua esperienza su Beta M4
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireJUST FUN! Contagious fun, greatest versatility and original design at an aggressive price. Try to mix together: the lightness and the size of a scrambler, an absolutely original design, maximum fun and driving pleasure. Here's the brand new formula coming out the Beta factory. The new M4 is something the market has never seen before. M4 enters a very tough background – the supermotard – but she shows no complex or awe. As a truly entry-level, her weapons are the absolutely fun driving characteristics and her price. The new M4 is good not only for who enter the two-wheeled universe for the first time (her power below 25 kW makes her suitable to the newly-licensed) but also for all the drivers who can't stand heavy and little handy bikes, longing for an original and absolutely fun motorbike.
Informazioni generali
Tipologia
Super motard
Cilindrata
349.0 cc (21.30 cubic inches)
Tipo motore
Monocilindrico, quattro tempi
Rapporto di compressione
9.5:1
Alesaggio x corsa
79.0 x 71.2 mm (3.1 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Carburettor. Mikuni BST 33
Accensione
Elettronica
Sistema di lubrificazione
forced with pump
Frizione
Wet multi-disc clutch
Escursione anteriore
46 mm (1.8 inches)
Diametro
310 mm (12.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
133.0 kg (293.2 pounds)
Altezza sella
870 mm (34.3 inches) If adjustable, lowest setting.
Altezza totale
1220 mm (48.0 inches)
Lunghezza totale
2160 mm (85.0 inches)
Larghezza totale
860 mm (33.9 inches)
Altezza da terra
305 mm (12.0 inches)
Interasse
1410 mm (55.5 inches)
Capacita carburante
10.50 litres (2.77 US gallons)
Capacita carburante di riserva
3.00 litres (0.79 US gallons)
Colori disponibili
Silver, Black
Sospensioni
Sospensione anteriore
Hydraulic fork with ø46 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
steel double cradle frame
Ruote
Pneumatico anteriore
3.5-17
Pneumatico posteriore
4.25-17
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
