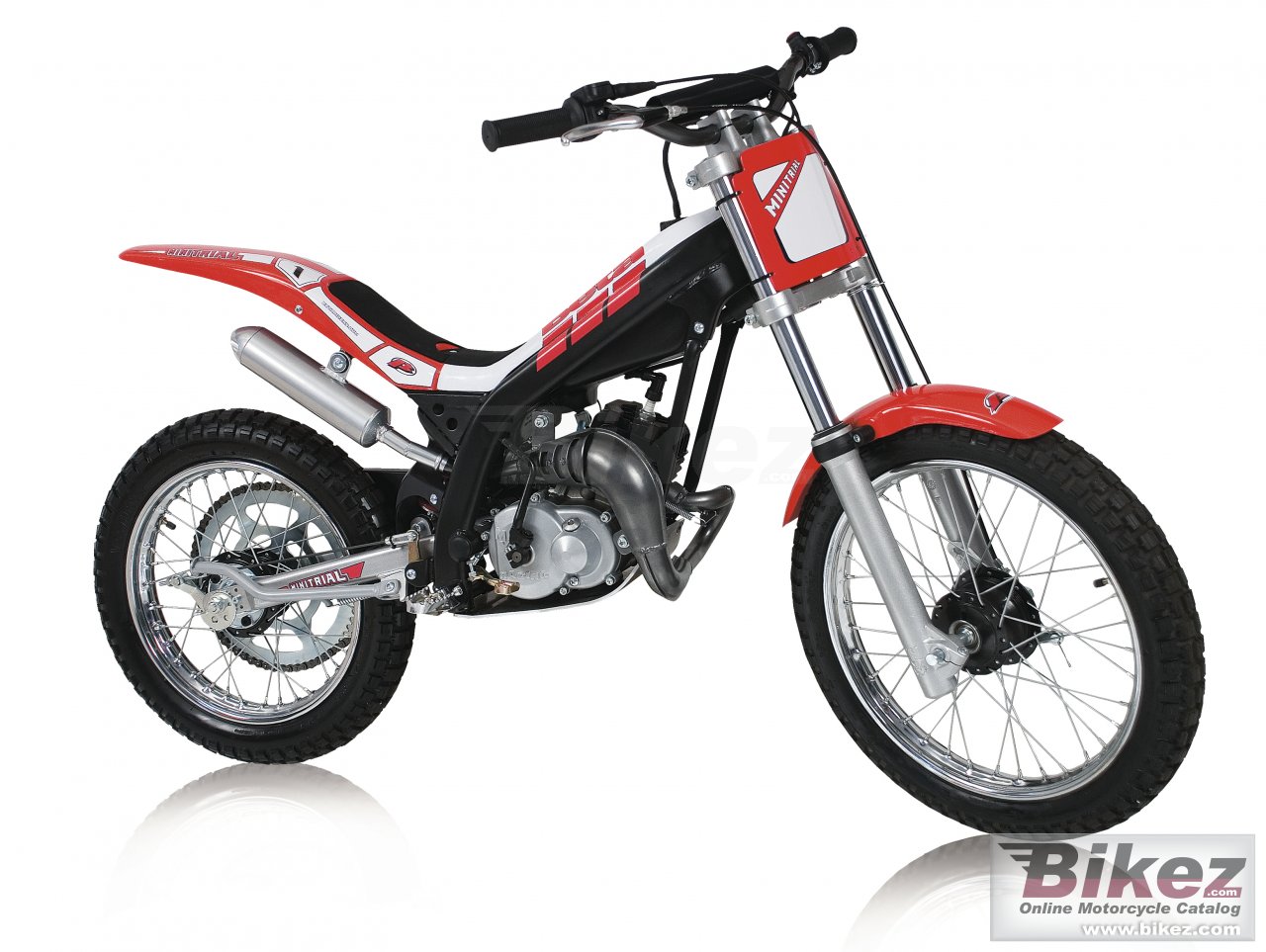

Accedi per recensireAlways thoughtful in growing up the champions of tomorrow, Beta embodies its attention towards youth with a complete trial range suitable for all ages. Little riders craving to climb over the first obstacle with dad and his Rev3, can get on the new Minitrial, a light vehicle moved by a brisk single-cylinder engine, 2 strokes and air-cooled. A solid braking system guarantees the safety required when learning the coolest trial tricks and secrets. Spirited even in its new colour, matching an ice grey with a mat black and a vigorous flash red, the little but well-built Minitrial is the best way for the youth to enjoy the nature.
Informazioni generali
Tipologia
Trial
Cilindrata
49.0 cc (2.99 cubic inches)
Tipo motore
Single cylinder, two-stroke
Rapporto di compressione
13.9:1
Alesaggio x corsa
39.5 x 40.0 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor. Dell´Orto SHA 14 - 12L
Accensione
Electronic Selettra
Sistema di lubrificazione
mix with fuel 1,5% (with synthetic oil)
Frizione
Automatic centrifugal wet clutch
Diametro
66 mm (2.6 inches)
Diametro
90 mm (3.5 inches)
Peso a secco
42.5 kg (93.7 pounds)
Altezza sella
570 mm (22.4 inches) If adjustable, lowest setting.
Altezza totale
940 mm (37.0 inches)
Lunghezza totale
1530 mm (60.2 inches)
Larghezza totale
650 mm (25.6 inches)
Altezza da terra
255 mm (10.0 inches)
Interasse
1020 mm (40.2 inches)
Capacita carburante
2.00 litres (0.53 US gallons)
Capacita carburante di riserva
0.30 litres (0.08 US gallons)
Sospensioni
Sospensione anteriore
Mechanical fork with ø30 mm shaft
Telaio
Tipologia telaio
Steel tubing
Ruote
Pneumatico anteriore
2.5-16
Pneumatico posteriore
2.5-14
Freni
Freno anteriore
Expanding brake (drum brake). Mechanical drive drum
Freno posteriore
Expanding brake (drum brake). Mechanical drive drum
Trasmissione
Cambio
Automatic
Raffreddamento
Sistema di raffreddamento
Aria
