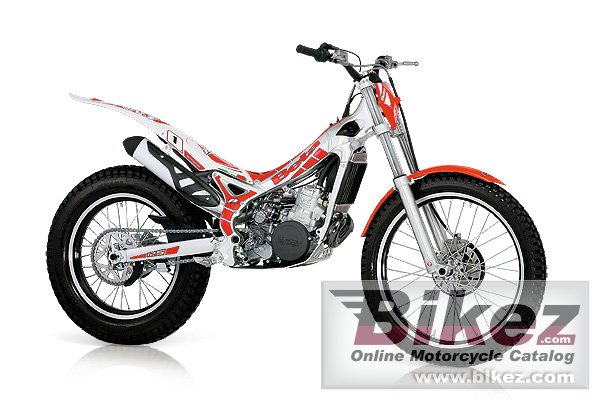

Rev 3 200
Scrivi la tua esperienza su Beta Rev 3 200
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireTechnical Modifications 2008 New crankcase. New design in the area of the connection between barrel and crankcase has reduced crank chamber volume with a nett increase in smoothness at low revs. New main bearings: these ensure greater smoothness and reliability. New crankshaft oilseal: the reduction in friction has given the engine a cleaner response to the throttle. New colour-scheme: a brand-new mix of white and fluorescent red.
Informazioni generali
Categoria
Trial
Cilindrata
195.0 cc (11.90 cubic inches)
Rapporto di compressione
11.8:1
Alesaggio x corsa
64.0 x 64.0 mm (2.5 x 2.5 inches)
Sistema di alimentazione
Carburettor. Keihin PWK ø 28mm
Accensione
Electronic AET 12V - 85W
Sistema di lubrificazione
mix with fuel 1,5 % (synthetic oil)
Frizione
Wet multi-disc clutch with cush-drive rubber
Diametro
185 mm (7.3 inches)
Diametro
165 mm (6.5 inches)
Peso a secco
70.0 kg (154.3 pounds)
Altezza sella
660 mm (26.0 inches) If adjustable, lowest setting.
Altezza totale
1120 mm (44.1 inches)
Lunghezza totale
1990 mm (78.3 inches)
Larghezza totale
850 mm (33.5 inches)
Altezza da terra
310 mm (12.2 inches)
Interasse
1310 mm (51.6 inches)
Capacita carburante
3.00 litres (0.79 US gallons)
Capacita carburante di riserva
0.80 litres (0.21 US gallons)
Modifications compared to previous model
Technical Modifications 2008 New crankcase. New design in the area of the connection between barrel and crankcase has reduced crank chamber volume with a nett increase in smoothness at low revs. New main bearings: these ensure greater smoothness and reliability. New crankshaft oilseal: the reduction in friction has given the engine a cleaner response to the throttle. New colour-scheme: a brand-new mix of white and fluorescent red.
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø38 mm shaft
Sospensione posteriore
Hydraulic monoshock
Telaio
Tipologia telaio
Double wave aluminium beam
Ruote
Pneumatico anteriore
2.75-21
Pneumatico posteriore
4-18
Freni
Freno anteriore
Single disc. 4 piston caliper
Freno posteriore
Single disc. 2 piston caliper
Trasmissione
Cambio
6 marce
Raffreddamento
Sistema di raffreddamento
Liquido
