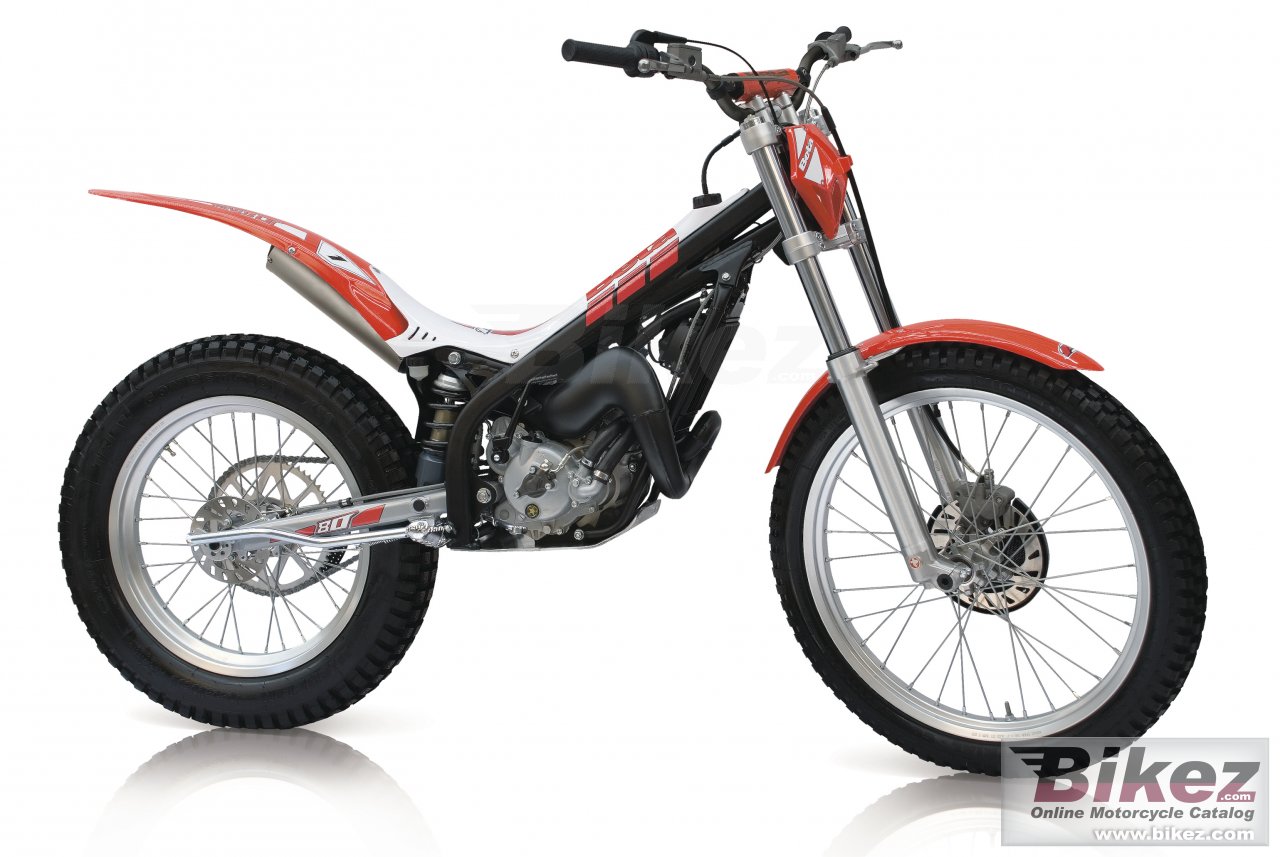

Rev 80
Scrivi la tua esperienza su Beta Rev 80
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireAttentive as ever to the needs of younger riders, Beta has enriched its trials range this year with a new REV-80: more adult and professional geometry and dimensions, and the usual emphasis on feel and confidence for riders who are just starting.
Informazioni generali
Tipologia
Trial
Cilindrata
79.6 cc (4.86 cubic inches)
Tipo motore
Single cylinder, two-stroke
Rapporto di compressione
14.7:1
Alesaggio x corsa
48.0 x 44.0 mm (1.9 x 1.7 inches)
Sistema di alimentazione
Carburettor. Dell´ orto PHBG 21
Accensione
AET
Sistema di lubrificazione
mix with fuel 1,5 % (synthetic oil)
Diametro
175 mm (6.9 inches)
Diametro
150 mm (5.9 inches)
Peso a secco
64.0 kg (141.1 pounds)
Altezza sella
652 mm (25.7 inches) If adjustable, lowest setting.
Altezza totale
1110 mm (43.7 inches)
Lunghezza totale
1925 mm (75.8 inches)
Larghezza totale
815 mm (32.1 inches)
Altezza da terra
295 mm (11.6 inches)
Interasse
1230 mm (48.4 inches)
Capacita carburante
2.50 litres (0.66 US gallons)
Capacita carburante di riserva
0.50 litres (0.13 US gallons)
Modifications compared to previous model
New larger-diameter forks (ø 38 mm) with rebound adjustment and altered offset to increase rideability New shockabsorber, derived from the one fitted to the larger-capacity machines, for even more professional and high-performance use Swing-arm mounted on roller bearings for increased smoothness, reduced friction and greater reliability Rationalisation and optimisation of the front end with a gain in terms of greater rigidity Improved performance from brake system as a result of the latest changes: new rear brake caliper (like the Rev-3 250), more powerful, more controllable and better protected from knocks a new rear brake lever with improved operability new master-cylinder and front caliper: opposed pistons and floating disc for even more controllable and precise action New front disc cover of new design New hubs with larger wheel-spindles in ergal: reduced weight combined with increased rigidity and a more professional look New wheel-rims in aluminium, lighter and more rigid, and a move to tubeless tyres New aluminium handlebar with cross-piece New design of silencer, with optimised performance New ø 21 mm Dell'Orto carburettor New more precise and effective master-cylinder New design for front mudguard New colours and graphics to match the top-of-the-range Rev
Telaio
Tipologia telaio
Double wave aluminium beam
Ruote
Pneumatico anteriore
2.75-21
Pneumatico posteriore
4-18
Freni
Freno anteriore
Single disc. 2-piston calipers
Freno posteriore
Single disc. 2-piston calipers
