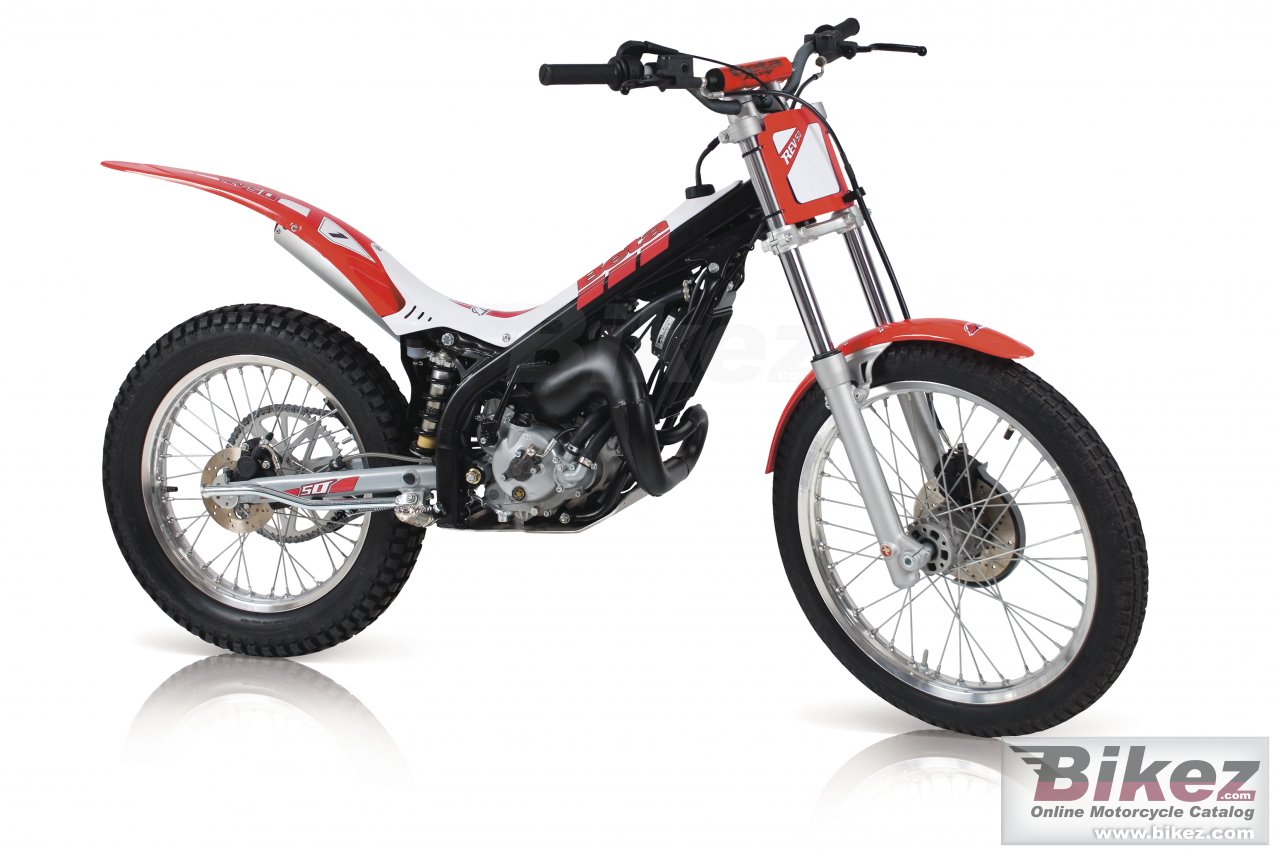

Rev 50
Scrivi la tua esperienza su Beta Rev 50
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe smallest of the Beta trials bikes with gearbox is growing and evolving. Created for those who are just starting in the trials world, the new REV-50 now gets a frame with more generous dimensions, and an engine capable of putting its young users more at their ease.
Informazioni generali
Categoria
Trial
Cilindrata
49.9 cc (3.04 cubic inches)
Rapporto di compressione
14.5:1
Alesaggio x corsa
39.5 x 40.8 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor. Dell´ orto PHBG 21
Accensione
AET
Sistema di lubrificazione
mix with fuel 1,5 % (synthetic oil)
Frizione
Wet multi-disc clutch
Diametro
175 mm (6.9 inches)
Diametro
150 mm (5.9 inches)
Peso a secco
60.0 kg (132.3 pounds)
Altezza sella
620 mm (24.4 inches) If adjustable, lowest setting.
Altezza totale
1070 mm (42.1 inches)
Lunghezza totale
1850 mm (72.8 inches)
Larghezza totale
720 mm (28.3 inches)
Altezza da terra
300 mm (11.8 inches)
Interasse
1210 mm (47.6 inches)
Capacita carburante
2.50 litres (0.66 US gallons)
Capacita carburante di riserva
0.50 litres (0.13 US gallons)
Modifications compared to previous model
2008 Technical Modifications New and more evolved engine with combustion parts and exhaust developed for trials use, with the objective of inspiring more confidence in the very young. 6 marce gearbox designed for trials use engine can be started with the bike in gear, to facilitate starting in all situations water cooling with electric fan to ensure better reliability and consistency of performance exhaust assembly modified to optimise match with the new engine components New ø 21 mm Dell'Orto carburettor Final drive ratio of front/rear sprockets revised and optimised to make full use of the new motor New frame with the same geometry as the larger Rev-80 and high-strength steel construction New shockabsorber to match the bike's new geometry Completely new exhaust assembly to optimise the performance of the new engine New design of the silencer Hydraulic clutch for greater riding precision New colours and graphics to match the Rev-3
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø38 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
Steel
Ruote
Pneumatico anteriore
2.50-19
Pneumatico posteriore
3.5-17
Freni
Freno anteriore
Single disc. 2-opposed pistons
Freno posteriore
Single disc. 2-opposed pistons
Trasmissione
Cambio
6 marce
