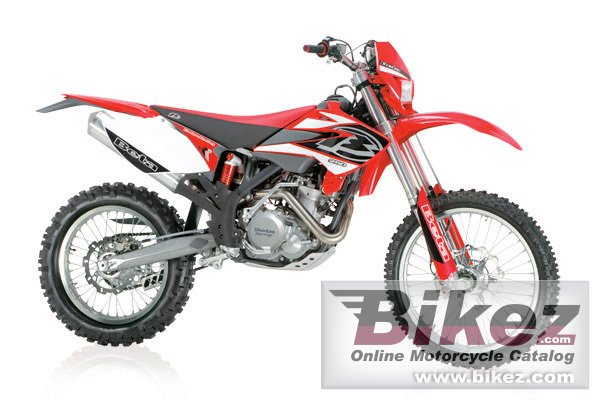

Rr 4T 250
Scrivi la tua esperienza su Beta Rr 4T 250
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireNew Performance, Same Spirit Beta is rolling out a new line of Enduro 4-stroke bikes, but its spirit and philosophy remain unchanged: great performance that kicks up confidence and fun to the max. An Enduro carries you far beyond frustration to the land of fun and excitement: it's immediate, efficiently simple, and feels great to ride! Fun and confidence, of course, do not make these machines any less sporty. Races are an essential proving ground: the rigorous and prolonged testing Jarno Boano and Enduro Team did, in both training and competition, have tried out the RR Enduro machines, creating new benchmarks for developing the 2007 models. These new machines still remain true to our original philosophy, a simple and straightforward recipe based on three ingredients: Maximum feeling of confidence and ease, thanks to well-built cycle parts that are second to none; High-performance engine, combined with reliability that has become a hallmark of Enduro quality; Top-of-the-line components.
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
250.0 cc (15.26 cubic inches)
Rapporto di compressione
12.0:1
Alesaggio x corsa
75.0 x 56.5 mm (3.0 x 2.2 inches)
Sistema di alimentazione
Carburettor. Keihin FCR-MX 37
Accensione
DC-CDI without trembler with variable ignition
Sistema di lubrificazione
2 oil pumps
Frizione
wet multi-disc clutch
Diametro
255 mm (10.0 inches)
Diametro
240 mm (9.4 inches)
Peso a secco
117.0 kg (257.9 pounds)
Altezza sella
940 mm (37.0 inches) If adjustable, lowest setting.
Altezza totale
1255 mm (49.4 inches)
Lunghezza totale
2270 mm (89.4 inches)
Larghezza totale
813 mm (32.0 inches)
Altezza da terra
320 mm (12.6 inches)
Interasse
1490 mm (58.7 inches)
Capacita carburante
8.50 litres (2.25 US gallons)
Capacita carburante di riserva
1.00 litres (0.26 US gallons)
Motore
Tipo motore
Monocilindrico, quattro tempi
Sospensioni
Sospensione anteriore
Hydraulic USD fork with ø45 mm shaft
Sospensione posteriore
Monoshock with progressive compound lever
Telaio
Tipologia telaio
Molybdenum steel with double cradle split above the exhaust port
Ruote
Pneumatico anteriore
90/90-21
Pneumatico posteriore
140/80-18
Freni
Freno anteriore
Single disc. double-piston floating caliper
Freno posteriore
Single disc. single-piston floating caliper
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
Manuali PDF e documentazione tecnica Beta Rr 4T 250
In questa sezione trovi manuali officina, libretti uso, schemi elettrici, cataloghi ricambi e altri PDF tecnici associati a questo modello. Ogni documento ha anche una scheda indicizzabile, utile per intercettare ricerche specifiche su Google.
Manuale officina
Rr 4t 250 400 450 525 - Motomanager It Beta Workshop Manual Rr 4t 250 400 450 525 Manual
23/04/2026Importato da filesystem esterno. Marca: Beta. Cartella: Rr 4t 250 400 450 525. File originale: motomanager-it-beta-workshop-manual-rr-4t-250-400-450-525-manual.pdf.
motomanager-it-beta-workshop-manual-rr-4t-250-400-450-525-manual.pdfContribuisci con un PDF
