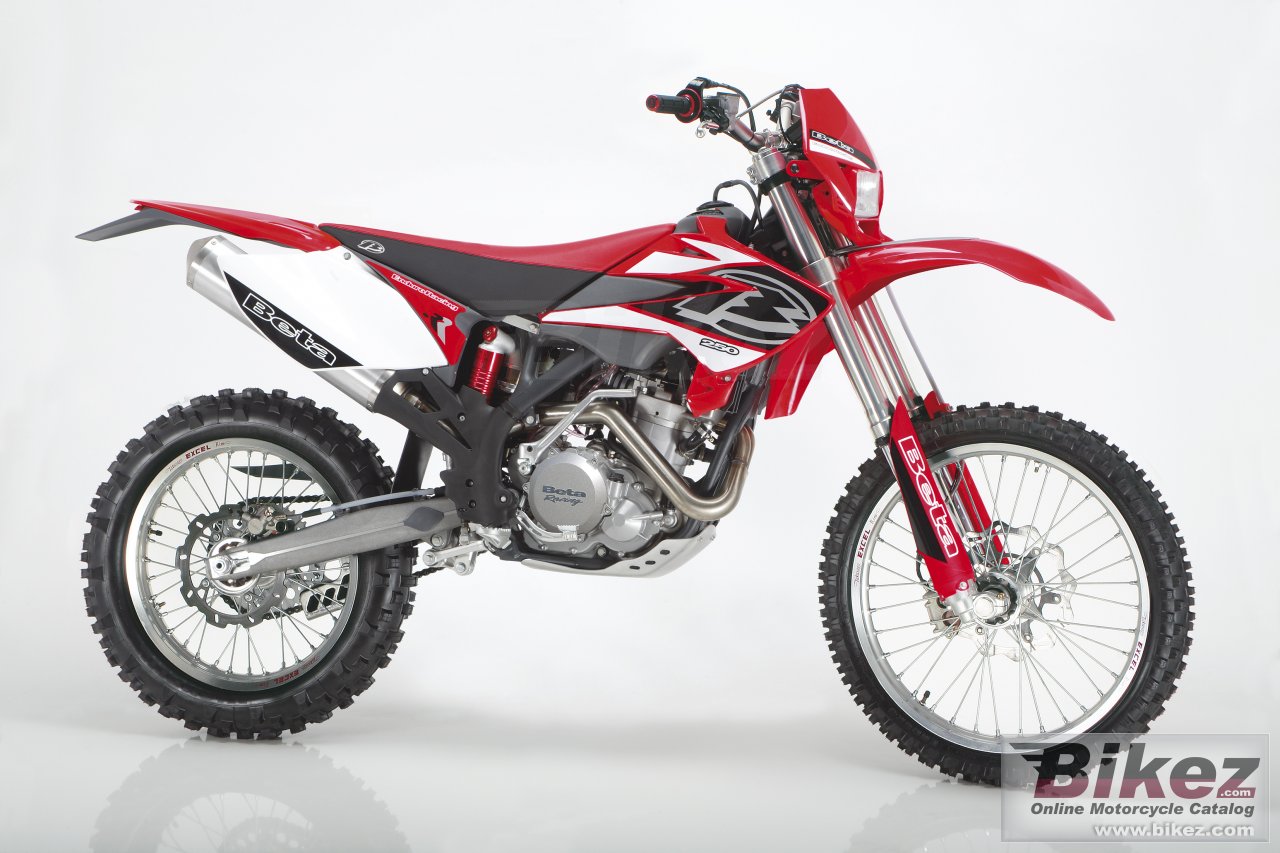

Rr 250M
Scrivi la tua esperienza su Beta Rr 250M
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireBeta is rolling out a new line of Enduro 4-stroke bikes, but its spirit and philosophy remain unchanged: great performance that kicks up confidence and fun to the max: Technical Modifications 2007 - New Ø 45 mm Marzocchi Shiver forks with black anodising on the fork spider: an unparalleled reduction in stiction and increase in sensitivity as a result of the latest manufacturing processes on the fork tubes. - New adjustment system on the Sachs shockabsorber: gives greater progressiveness and traction together . - Clutch side cover splits into two parts. - Silencer with new internal design: built to ensure optimum performance. - New rear master-cylinder from Nissin. - Footrests have been moved rearwards by 5 mm compared with the past: this brings an improvement in the riding position. - The sidestand bracket is new for this year: improved design combined with added sturdiness - A new seat design, new design for the seat tailpiece has allowed an air intake to be added - This year's graphic is new and aggressive: a brand new mix in black and white combined with Beta fluorescent red for an aggressive look in every detail.
Informazioni generali
Tipologia
Enduro / fuoristrada
Cilindrata
250.0 cc (15.26 cubic inches)
Tipo motore
Monocilindrico, quattro tempi
Rapporto di compressione
12.0:1
Alesaggio x corsa
75.0 x 56.5 mm (3.0 x 2.2 inches)
Sistema di alimentazione
Carburettor. Keihin FCR-MX 37
Accensione
DC-CDI without trembler with variable ignition
Sistema di lubrificazione
2 oil pumps
Frizione
wet multi-disc clutch
Escursione anteriore
45 mm (1.8 inches)
Diametro
255 mm (10.0 inches)
Diametro
240 mm (9.4 inches)
Peso a secco
117.0 kg (257.9 pounds)
Altezza sella
940 mm (37.0 inches) If adjustable, lowest setting.
Altezza totale
1255 mm (49.4 inches)
Lunghezza totale
2270 mm (89.4 inches)
Larghezza totale
813 mm (32.0 inches)
Altezza da terra
320 mm (12.6 inches)
Interasse
1490 mm (58.7 inches)
Capacita carburante
8.50 litres (2.25 US gallons)
Capacita carburante di riserva
1.00 litres (0.26 US gallons)
Sospensioni
Sospensione anteriore
Hydraulic USD fork with ø45 mm shaft
Sospensione posteriore
Monoshock with progressive compound lever
Telaio
Tipologia telaio
Molybdenum steel with double cradle split above
Ruote
Pneumatico anteriore
90/90-21
Pneumatico posteriore
140/80-18
Freni
Freno anteriore
Single disc. Floating disc ø255 mm and double-piston floating caliper
Freno posteriore
Single disc. Disc ø240 mm and single-piston floating caliper
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
