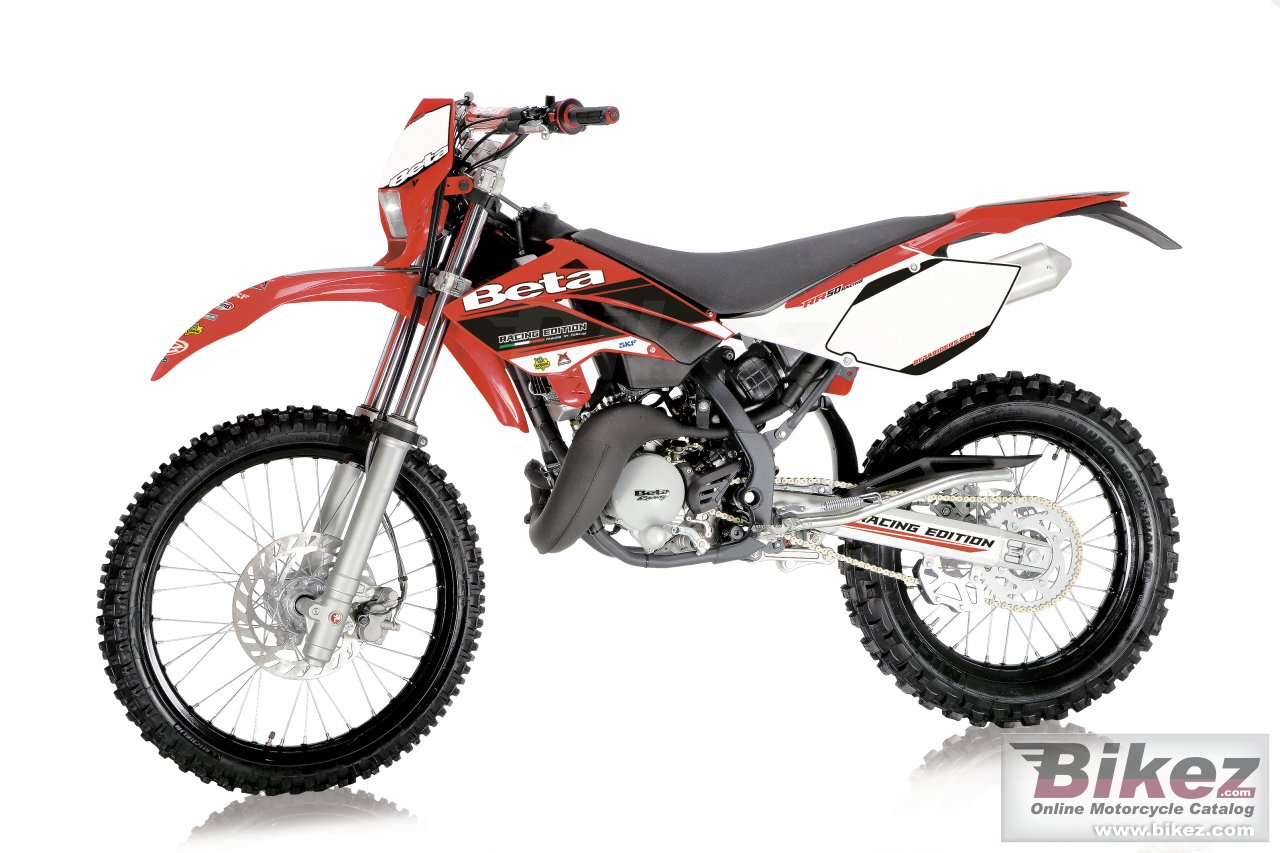

Rr 50 Enduro Racing Euro 2
Scrivi la tua esperienza su Beta Rr 50 Enduro Racing Euro 2
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireMore than just a restyling of the traditional RR, this is a completely original design created specifically for Enduro competitions – a specialized bike that has all the features necessary to put it at the top of its class. The new RR Enduro Racing design is the fruit of experience gained in the Under 23 Italian Championship competitions, with second-, third, and fifth-place finishes in the final 2005 results, as the 30% of 50cc class riders who ride Beta bikes can confirm
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
49.7 cc (3.03 cubic inches)
Rapporto di compressione
12.0:1
Alesaggio x corsa
40.3 x 39.0 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHBN 16 FS
Accensione
Electronic AET 12V - 85W
Sistema di lubrificazione
mix with fuel 2% - Bardahl KTX
Frizione
Wet multi-disc clutch
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
85.0 kg (187.4 pounds)
Altezza sella
930 mm (36.6 inches) If adjustable, lowest setting.
Altezza totale
1240 mm (48.8 inches)
Lunghezza totale
2030 mm (79.9 inches)
Larghezza totale
790 mm (31.1 inches)
Altezza da terra
360 mm (14.2 inches)
Interasse
1325 mm (52.2 inches)
Capacita carburante
6.00 litres (1.59 US gallons)
Capacita carburante di riserva
1.00 litres (0.26 US gallons)
Modifications compared to previous model
Main features: Dual radiators for higher cooling efficiency under stress, for consistent performance. No automatic oil pump, for lighter weight. Fuel: 2.5% synthetic oil mix. Straight-cut primary transmission with a reinforced clutch basket for a net reduction of mechanical loss. No counterrotating balance shaft, to increase engine responsiveness. Adjustable hydraulically damped 41 mm forks (hydraulic damping with spring preload). Monoshock with preload adjustment and hydraulic damping in compression and rebound. Even more progressive new linkage system, with aluminum connecting and rocker arms. Aluminum swing arm with a broader cross section, for increased strength and stiffness. Aluminum rims. Aluminum handlebars. New backlit digital instrument panel.
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø41 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Telaio
Tipologia telaio
steel double cradle frame
Ruote
Pneumatico anteriore
80/90-21
Pneumatico posteriore
110/80-18
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Raffreddamento
Sistema di raffreddamento
Liquido
