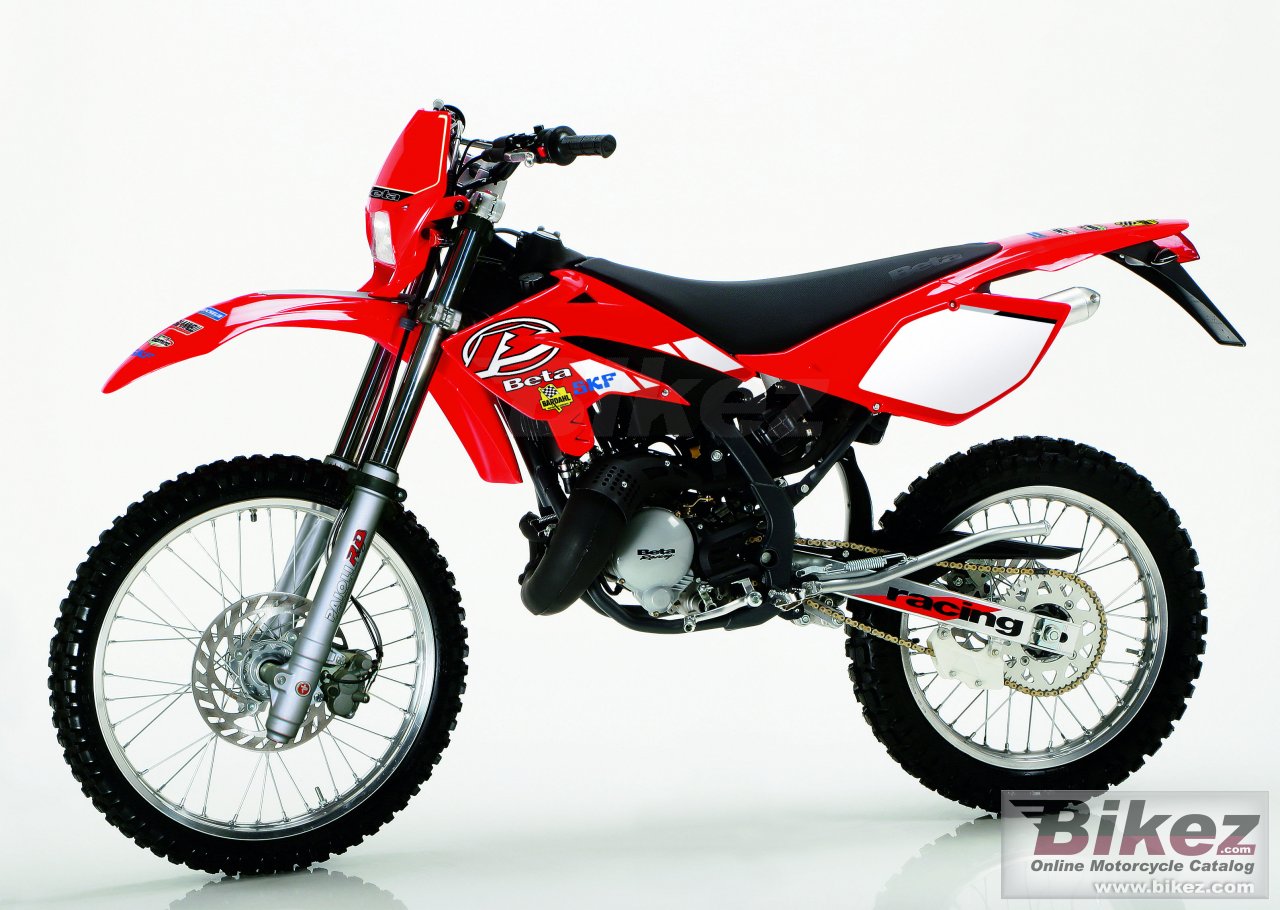

Rr 50 Enduro Racing
Scrivi la tua esperienza su Beta Rr 50 Enduro Racing
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe new RR 50 inherits the spirit of the greatest Beta bikes of the past, completing and innovating it to appear as the right bike to try out the first Enduro-labelled emotions.
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
49.7 cc (3.03 cubic inches)
Rapporto di compressione
12.0:1
Alesaggio x corsa
40.3 x 39.0 mm (1.6 x 1.5 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHBN 16 HS
Accensione
Elettronica
Escursione anteriore
250 mm (9.8 inches)
Escursione posteriore
280 mm (11.0 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
85.0 kg (187.4 pounds)
Lunghezza totale
2030 mm (79.9 inches)
Larghezza totale
790 mm (31.1 inches)
Altezza da terra
320 mm (12.6 inches)
Interasse
1395 mm (54.9 inches)
Capacita carburante
6.00 litres (1.59 US gallons)
Capacita carburante di riserva
1.00 litres (0.26 US gallons)
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
Hydraulic fork with ø41 mm shaft
Sospensione posteriore
Monoshock with adjustable spring preload
Ruote
Pneumatico anteriore
80/90-21
Pneumatico posteriore
110/80-18
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Raffreddamento
Sistema di raffreddamento
Liquido
