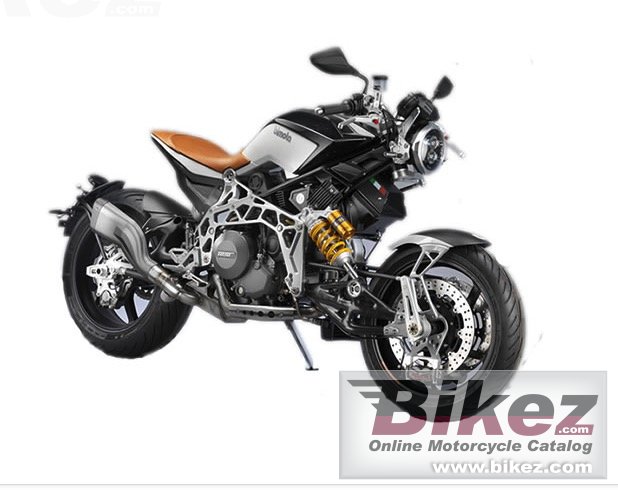

Tesi 3D Racecafe
Scrivi la tua esperienza su Bimota Tesi 3D Racecafe
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe Tesi 3D RaceCafe uses Ducati´s air-cooled 803cc engine, the same one that is powering the current Ducati Scrambler range, and the ride height is adjusted using two eccentrics where the front and rear suspensions are joined to the chassis.
Informazioni generali
Tipologia
Naked bike
Cilindrata
803.0 cc (49.00 cubic inches)
Tipo motore
V2, four-stroke
Rapporto di compressione
11.0:1
Alesaggio x corsa
83.0 x 66.0 mm (3.3 x 2.6 inches)
Sistema di alimentazione
Injection. Athena/ Electronic
Controllo alimentazione
Distribuzione desmodromica
Diametro
320 mm (12.6 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
165.0 kg (363.8 pounds)
Altezza sella
780 mm (30.7 inches) If adjustable, lowest setting.
Altezza totale
1100 mm (43.3 inches)
Lunghezza totale
2100 mm (82.7 inches)
Larghezza totale
700 mm (27.6 inches)
Interasse
1390 mm (54.7 inches)
Avviamento
Elettrico
Sospensioni
Sospensione anteriore
Öhlins monoshock with adjustable spring preload, compression and rebound, adjustable front end height +/-9,5mm
Sospensione posteriore
Öhlins monoshock with adjustable spring preload, compression and rebound, adjustable rear end height +/-14mm
Telaio
Tipologia telaio
Alu alloy plates, front and rear swingers in 25NiCrMo4 steel.
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
190/55-17
Freni
Freno anteriore
Double disc. Brembo 4-piston
Freno posteriore
Single disc. Brembo, 2 piston calliper
