Sm 125S
Scrivi la tua esperienza su Husqvarna Sm 125S
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.

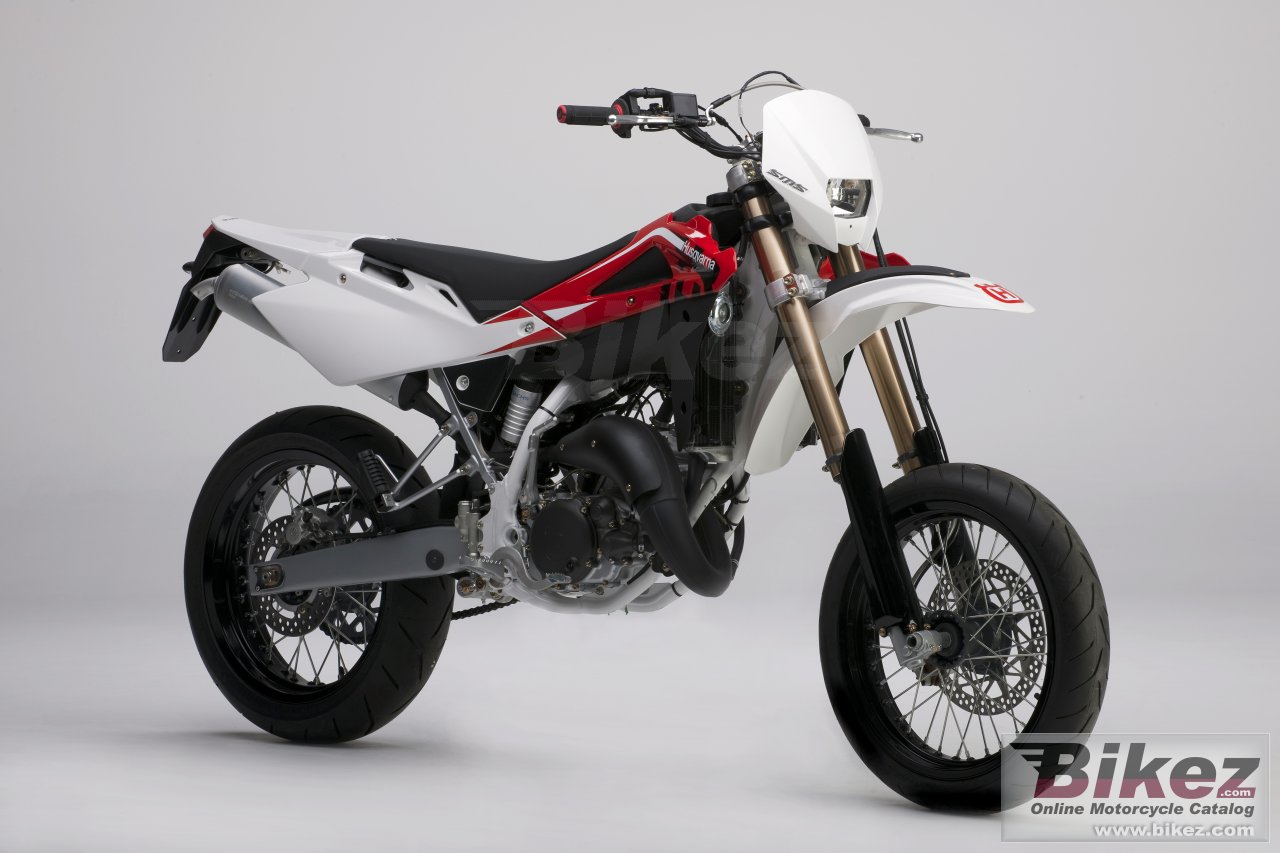

Accedi per recensireThe 2010 Husqvarna SM125S is the perfect choice for the street wise learner. Built to exacting standards using some of the best brand name components you can find, the SM125S may be only be 125cc but it´s a proper Moto, built to last.
Informazioni generali
Tipologia
Super motard
Cilindrata
124.8 cc (7.62 cubic inches)
Tipo motore
Single cylinder, two-stroke
Potenza
15.0 CV (10.9 kW)) @ 9500 giri/min
Rapporto di compressione
8.8:1
Alesaggio x corsa
54.0 x 54.5 mm (2.1 x 2.1 inches)
Sistema di alimentazione
Carburettor. Dell Orto VHST28
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Frizione
Wet multiplate type, mechanic control
Escursione anteriore
260 mm (10.2 inches)
Escursione posteriore
220 mm (8.7 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
113.5 kg (250.2 pounds)
Rapporto potenza/peso
0.1322 CV/kg
Altezza sella
870 mm (34.3 inches) If adjustable, lowest setting.
Lunghezza totale
2210 mm (87.0 inches)
Larghezza totale
825 mm (32.5 inches)
Altezza da terra
265 mm (10.4 inches)
Interasse
1470 mm (57.9 inches)
Capacita carburante
9.50 litres (2.51 US gallons)
Colori disponibili
Red/white, white
Avviamento
A pedale
Sospensioni
Sospensione anteriore
41mm Paioli USD
Sospensione posteriore
Paioli adjustable shock absorber with Soft Damp linkage
Telaio
Tipologia telaio
Double tube cradle with steel round tubes, rear frame with steel square tubes
Ruote
Pneumatico anteriore
110/70-17
Pneumatico posteriore
150/60-17
Freni
Freno anteriore
Single disc. 2-piston calipers
Freno posteriore
Single disc. 2-piston calipers
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
