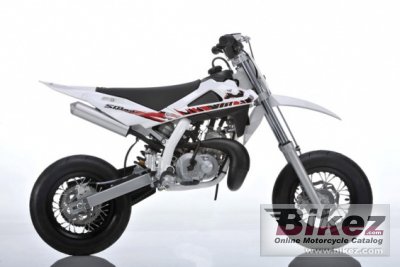

Accedi per recensireThe essence of a real dirt bike in miniature. This is the nature of the new Husqvarna SM50, the ´mini´ that has everything you need to make your debut as a real rider. Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with a clutch that can be adjusted according to the rider´s ability.
Informazioni generali
Tipologia
Minibike, sport
Cilindrata
49.0 cc (2.99 cubic inches)
Tipo motore
Single cylinder, two-stroke
Rapporto di compressione
7.1:1
Alesaggio x corsa
39.5 x 40.0 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor. Dell´Orto PHBG 19
Accensione
Electronic C.D.I.
Sistema di lubrificazione
Premix 50 : 1
Frizione
Dry, centrifugal type
Trasmissione finale
Single speed, chain final drive
Escursione anteriore
185 mm (7.3 inches)
Escursione posteriore
200 mm (7.9 inches)
Diametro
160 mm (6.3 inches)
Diametro
140 mm (5.5 inches)
Peso a secco
43.4 kg (95.7 pounds)
Altezza sella
680 mm (26.8 inches) If adjustable, lowest setting.
Altezza totale
880 mm (34.6 inches)
Lunghezza totale
1400 mm (55.1 inches)
Larghezza totale
655 mm (25.8 inches)
Altezza da terra
250 mm (9.8 inches)
Interasse
995 mm (39.2 inches)
Capacita carburante
2.70 litres (0.71 US gallons)
Colori disponibili
White/black/red
Avviamento
A pedale
Sospensioni
Sospensione anteriore
Marzocchi Upside-Down telescopic hydraulic fork with advanced axle
Sospensione posteriore
Sachs Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment
Telaio
Tipologia telaio
Steel single tube, steel rear frame
Ruote
Pneumatico anteriore
90/90-10
Pneumatico posteriore
90/90-10
Freni
Freno anteriore
Single disc. Fixed disc and caliper with hydraulic control
Freno posteriore
Single disc. Fixed disc and caliper with hydraulic control
Trasmissione
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
