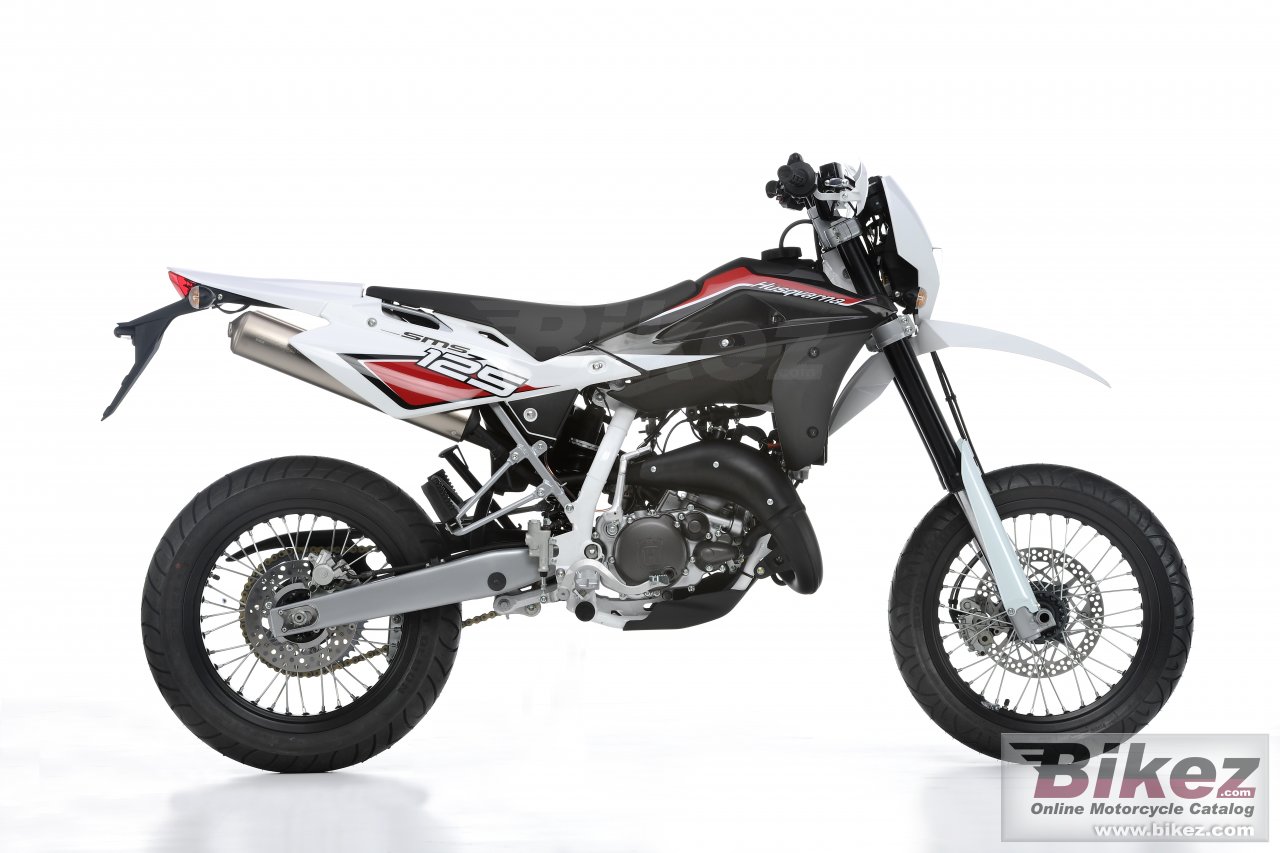

Sms125
Scrivi la tua esperienza su Husqvarna Sms125
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe SMS125 has become an icon for sixteen-year-olds, a sales phenomenon and a new fashion. It is the starting point for those who want to feel the thrills of an off road style bike, but is also ideal for everyday commuting in town.
Informazioni generali
Tipologia
Super motard
Cilindrata
124.8 cc (7.62 cubic inches)
Tipo motore
Single cylinder, two-stroke
Dettagli motore
Reed valve in the crankcase and
Rapporto di compressione
8.8:1
Alesaggio x corsa
54.0 x 54.2 mm (2.1 x 2.1 inches)
Sistema di alimentazione
Carburettor. Dell´Orto VHST 28-CS. ECS electronic carburetion system
Accensione
C.D.I. electronic, digital type, with adjustable advance
Sistema di lubrificazione
By electrical pump
Trasmissione finale
Constant mesh
Escursione anteriore
260 mm (10.2 inches)
Escursione posteriore
272 mm (10.7 inches)
Diametro
220 mm (8.7 inches)
Weight incl. oil, gas, etc
111.0 kg (244.7 pounds)
Altezza sella
929 mm (36.6 inches) If adjustable, lowest setting.
Altezza totale
1175 mm (46.3 inches)
Lunghezza totale
2145 mm (84.4 inches)
Larghezza totale
825 mm (32.5 inches)
Altezza da terra
265 mm (10.4 inches)
Interasse
1462 mm (57.6 inches)
Capacita carburante
9.50 litres (2.51 US gallons)
Colori disponibili
Red/black/white
Avviamento
A pedale
Impianto elettrico
12V - 4Ah battery.
Sospensioni
Sospensione anteriore
Marzocchi Upside-Down telescopic hydraulic fork with advanced axle
Sospensione posteriore
Sachs progressive ´Soft Damp´ type with single hydraulic shock absorber; spring preload adjustment
Ruote
Pneumatico anteriore
110/70-17
Pneumatico posteriore
140/60-17
Freni
Freno anteriore
Single disc. Fixed disc with hydraulic control and floating caliper
Freno posteriore
Single disc. Fixed disc with hydraulic control and floating caliper
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
