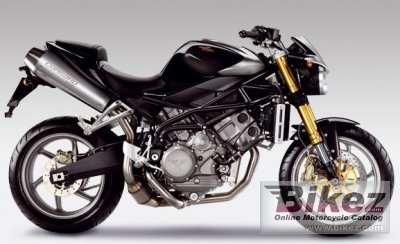

Morini Corsaro 1200 Scrambler
Scrivi la tua esperienza su Moto Morini Morini Corsaro 1200 Scrambler
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe Scrambler was invented in the 1960s to interpret the thirst for freedom and independence of a generation. Many years down the road, it still maintains its original allure. The aesthetics evoke the glory years that built the legend of the Scrambler, but they also reflect an absolutely modern motorbike with a simplicity and attention to details.
Informazioni generali
Categoria
Naked bike
Cilindrata
1187.0 cc (72.43 cubic inches)
Alesaggio x corsa
107.0 x 66.0 mm (4.2 x 2.6 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Magneti Marelli
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Frizione
Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder
Impianto di scarico
Double silencer, 3-way catalytic converter and oxygen sensor
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
130 mm (5.1 inches)
Diametro
320 mm (12.6 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
199.6 kg (440.0 pounds)
Rapporto potenza/peso
0.6921 CV/kg
Altezza sella
805 mm (31.7 inches) If adjustable, lowest setting.
Interasse
1440 mm (56.7 inches)
Capacita carburante
18.00 litres (4.76 US gallons)
Colori disponibili
Black/gray metallic, Red/grey met, White metallic/black
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Potenza
138.1 CV (100.8 kW)) @ 8500 giri/min
Coppia
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 6700 giri/min
Sospensioni
Sospensione anteriore
Marzocchi upside-down fully adjustable fork with 50 mm legs
Sospensione posteriore
With progressive motion and single Sachs shock absorber adjustable in extension, compression and spring pre-charge with singlering-nut.Enhanced piston and stretched counter-spring
Telaio
Tipologia telaio
Verlicchi high-strength steel tube trellis frame
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
180/55-17
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Raffreddamento
Sistema di raffreddamento
Liquido
