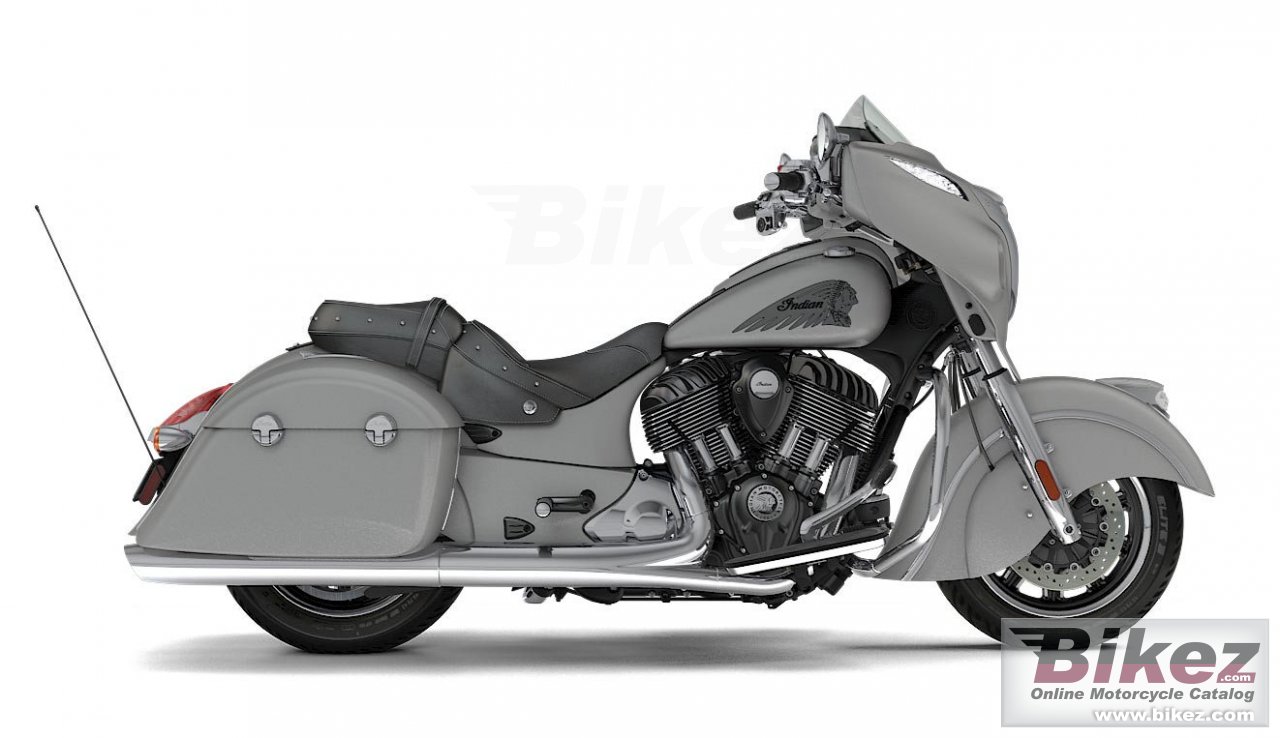

Chieftain
Scrivi la tua esperienza su Indian Chieftain
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireSmall windscreen. 7´ Touchscreen. Tire Pressure Monitoring. 100 Watt Stereo with AM/FM Bluetooth and Smartphone Compatible Input.
Informazioni generali
Tipologia
Custom / cruiser
Prezzo da nuova
US$ 23999. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1811.0 cc (110.51 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
Thunder Stroke® 111 engine
Rapporto di compressione
9.5:1
Alesaggio x corsa
113.0 x 108.0 mm (4.4 x 4.3 inches)
Sistema di alimentazione
Injection. Closed Loop Sequential Port Fuel Injection
Inclinazione cannotto di sterzo
25.0°
Avancorsa
150 mm (5.9 inches)
Escursione anteriore
119 mm (4.7 inches)
Escursione posteriore
114 mm (4.5 inches)
Diametro
300 mm (11.8 inches)
Sella
Dual leather seat
Peso a secco
376.0 kg (828.9 pounds)
Weight incl. oil, gas, etc
391.0 kg (862.0 pounds)
Altezza sella
660 mm (26.0 inches) If adjustable, lowest setting.
Altezza totale
1388 mm (54.6 inches)
Lunghezza totale
2571 mm (101.2 inches)
Larghezza totale
1000 mm (39.4 inches)
Interasse
1668 mm (65.7 inches)
Capacita carburante
20.80 litres (5.50 US gallons)
Capacita olio
5.20 litres (5.49 US quarts)
Colori disponibili
Black, Red, Silver, Silver/Black, Red/Black, Pearl White Smoke
Avviamento
Elettrico
Strumentazione
Fairing mounted instrument cluster featuring analog speedometer and tachometer, with fuel gauge, range, odometer and current gear.
Fari
Tear drop head lamp, spot lights, fender light
Capacita di carico
Hard saddle bags.
Garanzia di fabbrica
2 years
Olio motore
SAE 20W-40
Liquido freni
DOT 4
Candele
NGK DCPR8E, NGK DCPR8EIX
Idle speed
800+/-50 giri/min
Pulley teeth
30/66 (front/rear)
Pressione pneumatico anteriore
36 PSI (2.5 Bar or 250 kPa)
Pressione pneumatico posteriore
41 PSI (2.8 Bar or 280 kPa)
Fork tube size
46 mm (1.8 inches)
Motore
Coppia
161.1 Nm (16.4 kgf-m or 118.8 ft.lbs) @ 3000 giri/min
Sospensioni
Sospensione anteriore
Telescopic forks with air adjust
Sospensione posteriore
Single shock
Telaio
Tipologia telaio
Aluminium
Ruote
Pneumatico anteriore
130/90-16
Pneumatico posteriore
180/60-16
Freni
Freno anteriore
Double disc. ABS. Floating discs. 4 piston caliper.
Freno posteriore
Single disc. ABS. Floating disc. 2-piston caliper.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
