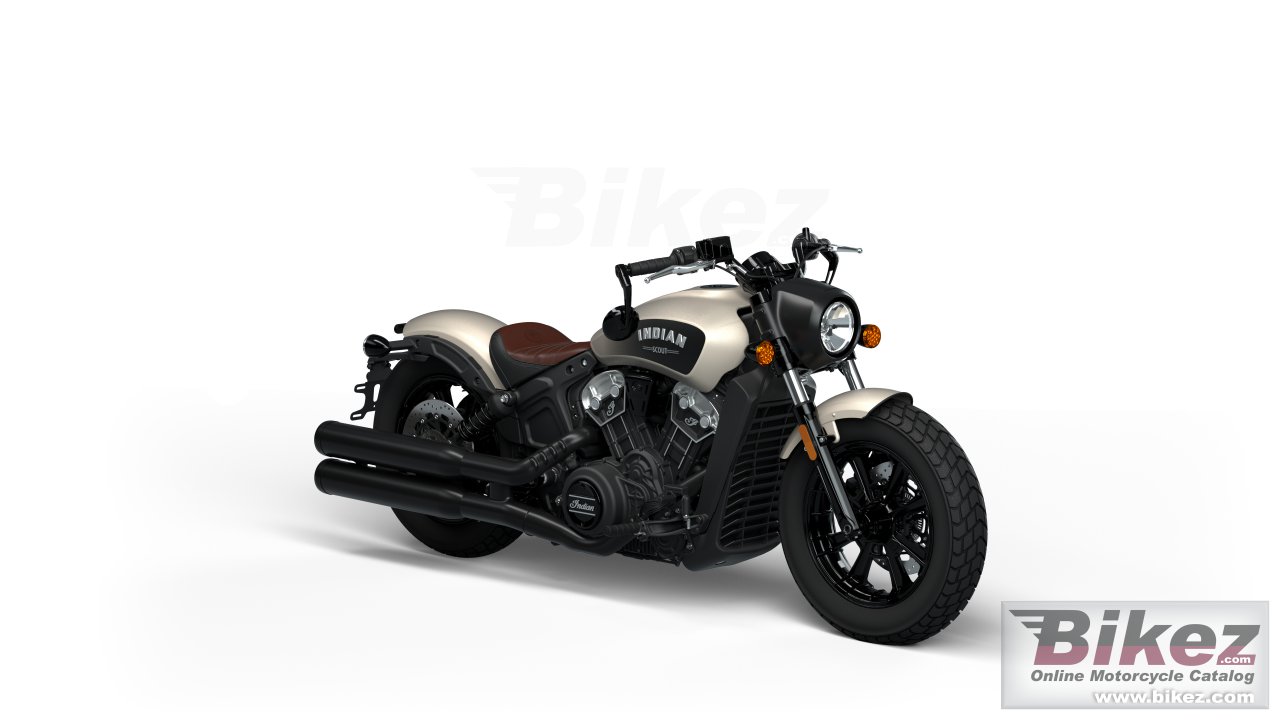

Scout Bobber
Scrivi la tua esperienza su Indian Scout Bobber
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireOnyx Black, Onyx Black Smoke, Sagebrush Smoke, Silver Quartz/Smoke, Springfield Blue Metallic, Icon: Stealth Gray Azure Crystal, Sunset Red Smoke, Icon: Copper Smoke, Icon: Indy Red
Informazioni generali
Tipologia
Custom / cruiser
Prezzo da nuova
US$ 12249. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1133.0 cc (69.14 cubic inches)
Tipo motore
V2, four-stroke
Potenza
100.0 CV (73.0 kW))
Rapporto di compressione
10.7:1
Alesaggio x corsa
99.0 x 73.6 mm (3.9 x 2.9 inches)
Sistema di alimentazione
Injection. Closed Loop Fuel Injection, 60 mm Bore
Frizione
Wet, Multi-Plate
Impianto di scarico
Split dual exhaust with crossover
Inclinazione cannotto di sterzo
29.0°
Avancorsa
120 mm (4.7 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
51 mm (2.0 inches)
Diametro
298 mm (11.7 inches)
Ruote
Cast Black wheels. Pirelli MT60RS tires.
Sella
Low Profilo Two-toned Solo Seat
Peso a secco
242.0 kg (533.5 pounds)
Weight incl. oil, gas, etc
251.0 kg (553.4 pounds)
Rapporto potenza/peso
0.4132 CV/kg
Altezza sella
649 mm (25.6 inches) If adjustable, lowest setting.
Altezza totale
1053 mm (41.5 inches)
Lunghezza totale
2223 mm (87.5 inches)
Larghezza totale
926 mm (36.5 inches)
Altezza da terra
129 mm (5.1 inches)
Interasse
1576 mm (62.0 inches)
Capacita carburante
12.50 litres (3.30 US gallons)
Colori disponibili
Onyx Black, Onyx Black Smoke, Sagebrush Smoke, Silver Quartz/Smoke, Springfield Blue Metallic, Icon: Stealth Gray Azure Crystal, Sunset Red Smoke, Icon: Copper Smoke, Icon: Indy Red
Avviamento
Elettrico
Strumentazione
Digital tachometer, odometer, trip meter, engine temp, and low fuel lamp
Fari
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Garanzia di fabbrica
2 Years, Unlimited Miles
Motore
Coppia
97.7 Nm (10.0 kgf-m or 72.1 ft.lbs) @ 5900 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork, 41mm
Sospensione posteriore
Dual shock
Ruote
Pneumatico anteriore
130/90-16
Pneumatico posteriore
150/80-16
Freni
Freno anteriore
Single disc. Optional ABS. Two-piston calipers.
Freno posteriore
Single disc. Optional ABS. Single-piston caliper.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
