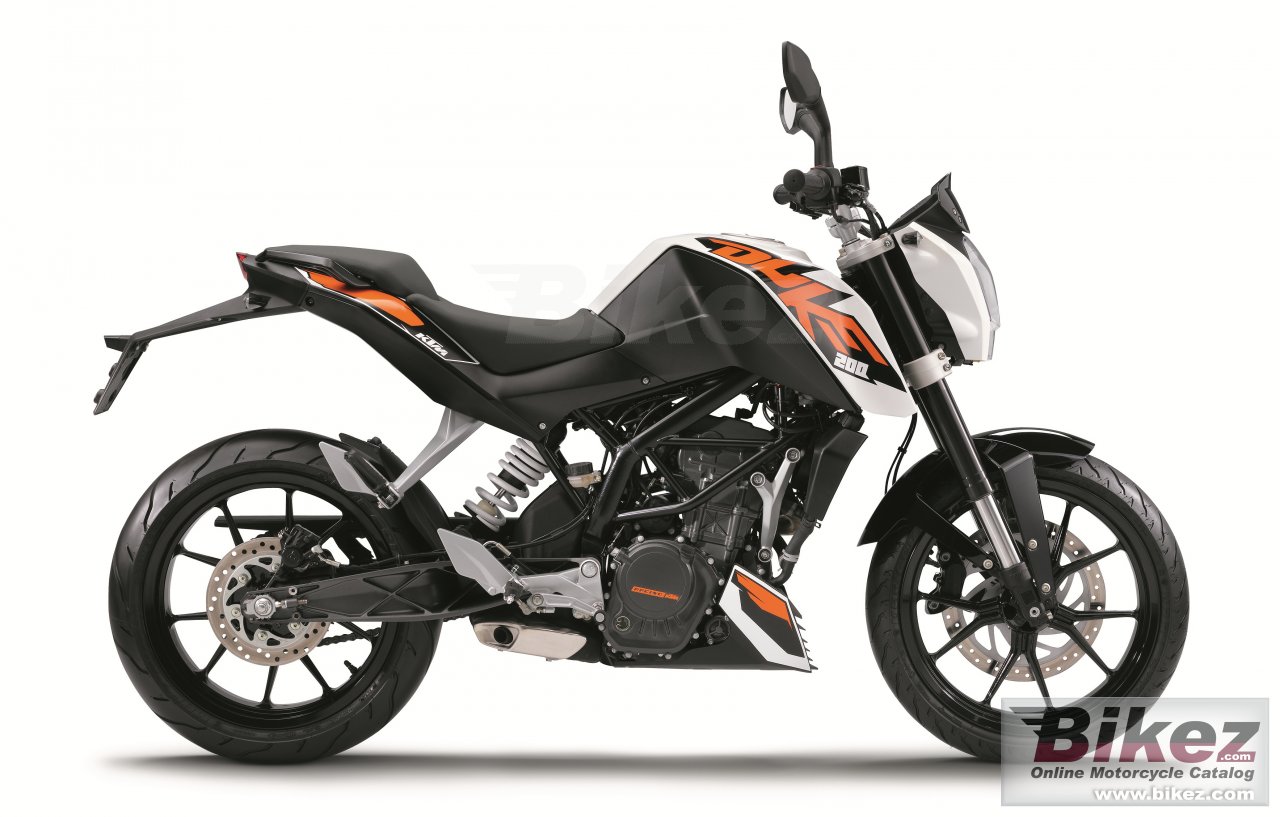

200 Duke
Scrivi la tua esperienza su Ktm 200 Duke
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensire19 kW (26 hp) of power and a dry weight of only 129.5 kg guarantee fast-paced riding fun with the new 200 Duke. The first-class chassis, with lightweight still trellis frame in the proven KTM design, turns it into a real carver through the bends.
Informazioni generali
Categoria
Naked bike
Cilindrata
199.5 cc (12.17 cubic inches)
Alesaggio x corsa
72.0 x 49.0 mm (2.8 x 1.9 inches)
Sistema di alimentazione
Injection
Accensione
Bosch EMS
Sistema di lubrificazione
Wet sump
Frizione
Wet multi-disc clutch, mechanically actuated
Trasmissione finale
5/8 x 1/4 (520) O Ring. Primary drive: 22:72.
Inclinazione cannotto di sterzo
25.0°
Escursione anteriore
150 mm (5.9 inches)
Escursione posteriore
150 mm (5.9 inches)
Diametro
300 mm (11.8 inches)
Diametro
230 mm (9.1 inches)
Ruote
Cast light alloy wheels, black 10-spoke.
Peso a secco
129.5 kg (285.5 pounds)
Rapporto potenza/peso
0.2008 CV/kg
Altezza sella
800 mm (31.5 inches) If adjustable, lowest setting.
Altezza da terra
170 mm (6.7 inches)
Interasse
1361 mm (53.6 inches)
Capacita carburante
11.00 litres (2.91 US gallons)
Colori disponibili
Orange/white/grey
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Potenza
26.0 CV (19.0 kW))
Sospensioni
Sospensione anteriore
WP upside-down Ø 43 mm
Sospensione posteriore
WP monoshock
Telaio
Tipologia telaio
Steel trellis frame, powder coated
Ruote
Pneumatico anteriore
110/80-17
Pneumatico posteriore
150/60-17
Freni
Freno anteriore
Single disc. Four-piston calipers.
Freno posteriore
Single disc. Floating disc. Single-piston caliper.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
