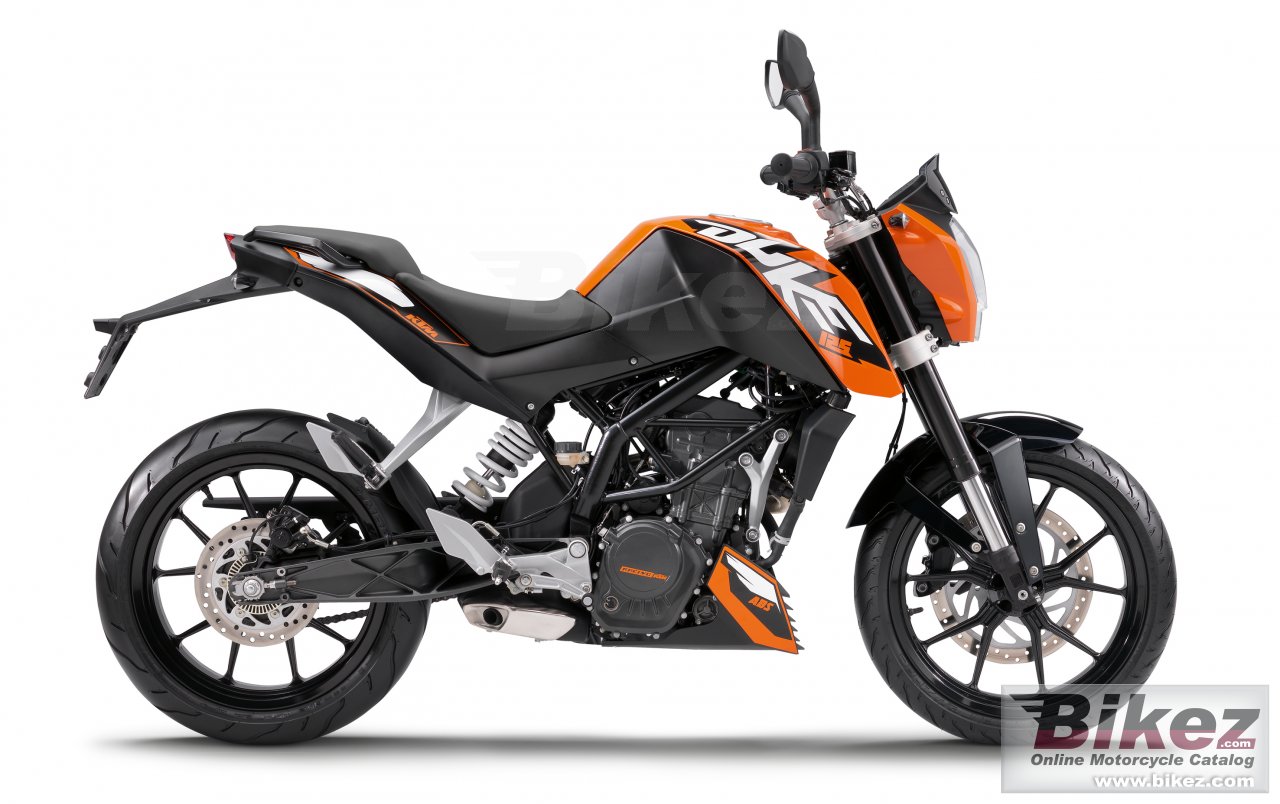

125 Duke
Scrivi la tua esperienza su Ktm 125 Duke
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireSince 2013, the 125 Duke has settled a new safety standard with the first ABS in the 125 cc class. A feature that makes the pleasure of the impressive Duke dynamics even safer for 16-year-olds and gives the finishing touch too what are unique chassis qualities in this segment. On the new KTM 125 Duke, the ABS – from Bosch as usual with KTM – monitors the function of the powerful brake system with a radially mounted four-piston calliper biting the 300mm diameter front disc - fun without risk, developed in close cooperation with the specialists from Bosch and Brembo. And for the stunt riders among us: the ABS is naturally disengageable.
Informazioni generali
Categoria
Naked bike
Cilindrata
125.0 cc (7.63 cubic inches)
Alesaggio x corsa
58.0 x 47.2 mm (2.3 x 1.9 inches)
Sistema di alimentazione
Carburettor
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Sistema di lubrificazione
Forced oil lubrication with 2 Eaton pumps
Frizione
Wet multi-disc clutch / hydraulically operated
Trasmissione finale
5/8 x 1/4 (520) O Ring. Primary drive: 22:72.
Inclinazione cannotto di sterzo
25.0°
Escursione anteriore
150 mm (5.9 inches)
Escursione posteriore
150 mm (5.9 inches)
Diametro
300 mm (11.8 inches)
Diametro
230 mm (9.1 inches)
Peso a secco
127.0 kg (280.0 pounds)
Rapporto potenza/peso
0.1181 CV/kg
Altezza sella
800 mm (31.5 inches) If adjustable, lowest setting.
Altezza da terra
170 mm (6.7 inches)
Interasse
1361 mm (53.6 inches)
Capacita carburante
11.00 litres (2.91 US gallons)
Colori disponibili
White, Orange
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Potenza
15.0 CV (10.9 kW))
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down
Sospensione posteriore
WP Suspension Monoshock
Telaio
Tipologia telaio
Tubular space frame made from steel tubes, powder-coated
Freni
Freno anteriore
Single disc. ABS. Four-pot brake caliper
Freno posteriore
Single disc. ABS. One-pot brake caliper, floating brake
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
