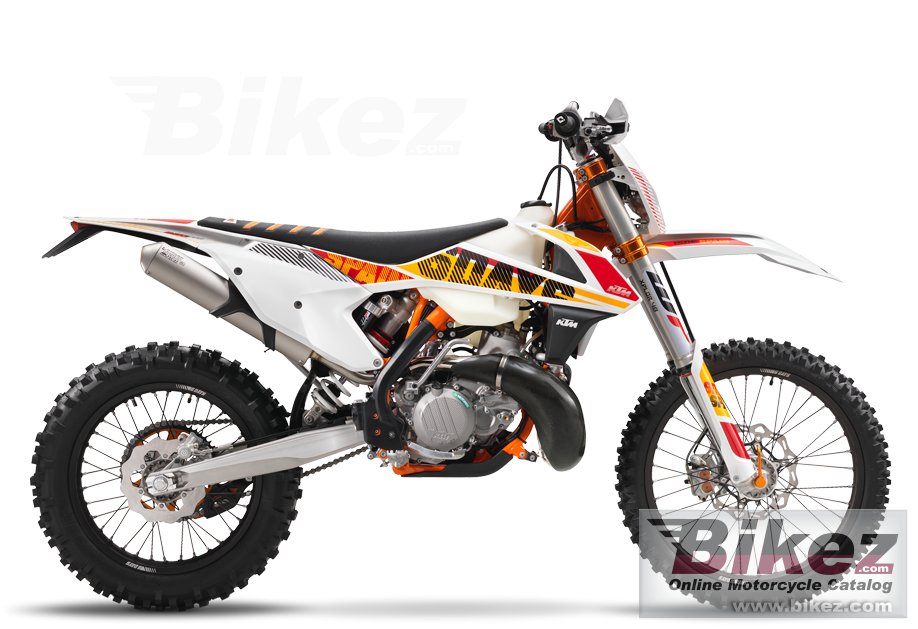

250 Exc Six Days
Scrivi la tua esperienza su Ktm 250 Exc Six Days
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe all-new WP XPlor 48 upside-down fork is a split fork developed by WP in close collaboration with KTM. It is fitted with a spring on both sides but features separated functions for each fork leg: compression damping is fitted on the left side, while rebound is on the right. So the forks can easily be adjusted for compression (left) and rebound (right) with the twist of a dial on top of the fork tubes (30 clicks each).
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
249.0 cc (15.19 cubic inches)
Dettagli motore
Reed intake.
Alesaggio x corsa
66.4 x 72.0 mm (2.6 x 2.8 inches)
Sistema di alimentazione
Carburettor
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Frizione
Wet, DDS multi-disc clutch, Brembo hydraulics
Trasmissione finale
14:50 (13:50). Primary drive: 26:72.
Inclinazione cannotto di sterzo
26.5°
Escursione anteriore
300 mm (11.8 inches)
Escursione posteriore
310 mm (12.2 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
100.5 kg (221.6 pounds)
Altezza sella
960 mm (37.8 inches) If adjustable, lowest setting.
Altezza da terra
370 mm (14.6 inches)
Interasse
1482 mm (58.3 inches)
Capacita carburante
9.50 litres (2.51 US gallons)
Colori disponibili
Orange/white/red/blue
Avviamento
Electric & kick
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
WP-USD Xplor 48 with preload adjuster
Sospensione posteriore
WP Xplor PDS shock absorber
Telaio
Tipologia telaio
Chrome-molybdenum steel central-tube
Freni
Freno anteriore
Single disc. Brake calipers on floating bearings
Freno posteriore
Single disc. Brake calipers on floating bearings
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
