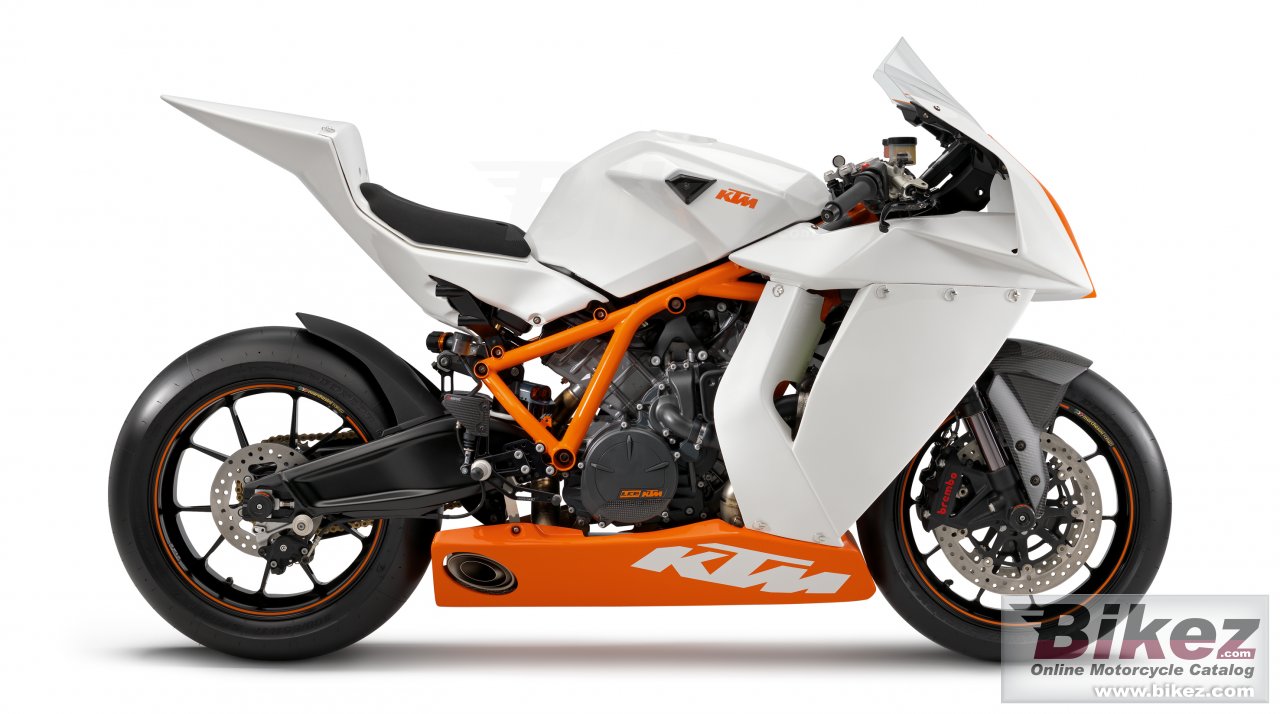

1190 Rc8 R Track
Scrivi la tua esperienza su Ktm 1190 Rc8 R Track
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireA strictly limited number of bikes for those who want to use their 1190 RC8 R exclusively on the racetrack. Factory-homologated for Superstock and built to be ´ready to race´ by the KTM Racing Division, with all the goodies from the KTM PowerParts range that make the potential for race success even greater.
Informazioni generali
Categoria
Sportiva
Cilindrata
1195.0 cc (72.92 cubic inches)
Dettagli motore
75° V-twin
Potenza
177.0 CV (129.2 kW)) @ 4000 giri/min
Rapporto di compressione
13.5:1
Alesaggio x corsa
105.0 x 69.0 mm (4.1 x 2.7 inches)
Sistema di alimentazione
Injection. Keihin EFI
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Sistema di lubrificazione
Dry-sump lubrication with 3 rotor pumps
Frizione
Wet multi-disc clutch / hydraulically operated
Trasmissione finale
17:37. Primary drive: 40:76. 5/8 x 1/4" (520) X and #8209;Ring chain.
Inclinazione cannotto di sterzo
23.3°
Avancorsa
97 mm (3.8 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
173.0 kg (381.4 pounds)
Rapporto potenza/peso
1.0231 CV/kg
Altezza sella
845 mm (33.3 inches) If adjustable, lowest setting.
Altezza da terra
110 mm (4.3 inches)
Interasse
1425 mm (56.1 inches)
Capacita carburante
16.50 litres (4.36 US gallons)
Colori disponibili
White/orange
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Coppia
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 giri/min
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down 4354
Sospensione posteriore
WP Suspension 4618 DACC
Telaio
Tipologia telaio
Tubular space frame made from chrome molybdenum steel, powder-coated
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
190/55-17
Freni
Freno anteriore
Double disc. Radially mounted four-piston brake calipers; floating brake discs
Freno posteriore
Single disc. Two piston, fixed caliper
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
