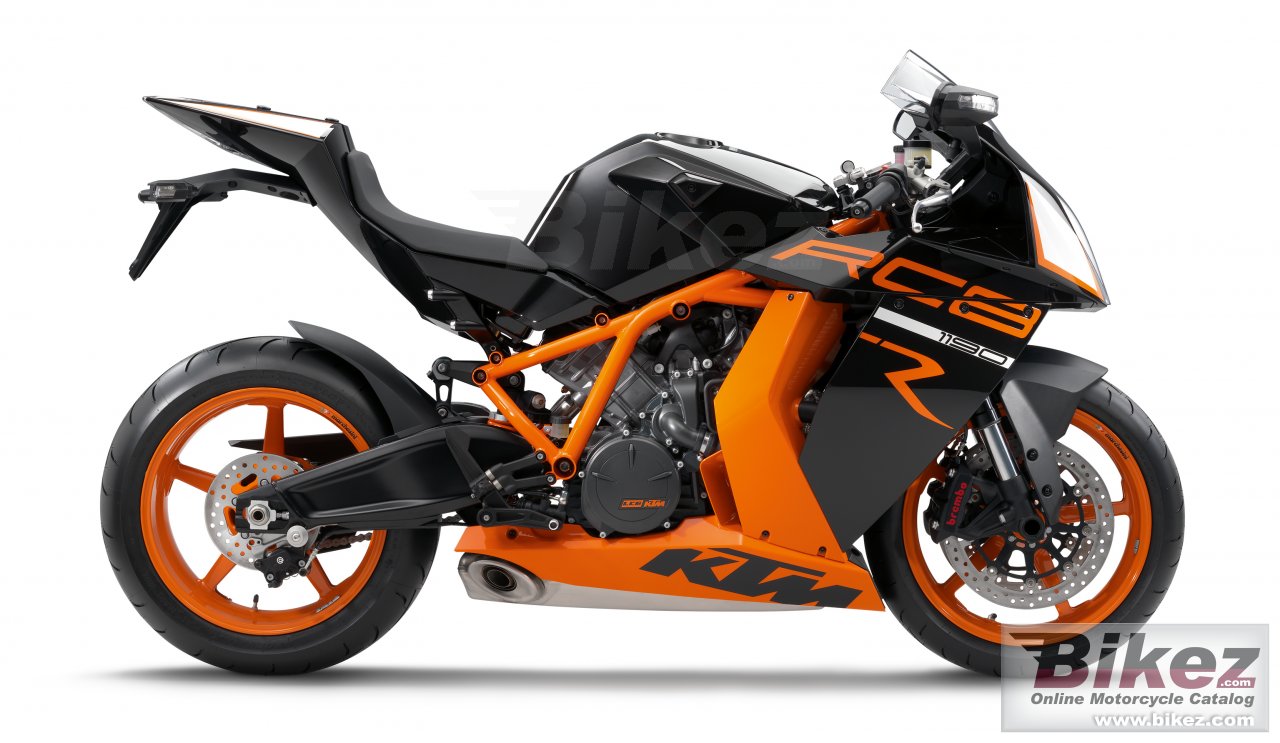

1190 Rc8 R
Scrivi la tua esperienza su Ktm 1190 Rc8 R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe ultimate power tool from KTM. KTM designers pulled out all the stops in the art of engine building when it came to the 1190 RC8 R. The rider has one of the most powerful V2 engines of our times and one of the best chassis in the world at his or her disposal - totally street-legal.
Informazioni generali
Tipologia
Sportiva
Cilindrata
1195.0 cc (72.92 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
V 75°
Potenza
173.0 CV (126.3 kW)) @ 4000 giri/min
Rapporto di compressione
13.5:1
Alesaggio x corsa
105.0 x 69.0 mm (4.1 x 2.7 inches)
Sistema di alimentazione
Injection. Keihin EFI
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Sistema di lubrificazione
Dry-sump lubrication with 3 rotor pumps
Frizione
Wet multi-disc clutch / hydraulically operated
Trasmissione finale
17:37. Primary drive: 40:76.
Inclinazione cannotto di sterzo
23.3°
Avancorsa
97 mm (3.8 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
186.0 kg (410.1 pounds)
Rapporto potenza/peso
0.9301 CV/kg
Altezza sella
805 mm (31.7 inches) If adjustable, lowest setting.
Altezza da terra
110 mm (4.3 inches)
Interasse
1425 mm (56.1 inches)
Capacita carburante
16.50 litres (4.36 US gallons)
Colori disponibili
White/orange
Avviamento
Elettrico
Motore
Coppia
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 giri/min
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down 4354
Sospensione posteriore
WP Suspension 4014 VP
Telaio
Tipologia telaio
Tubular space frame made from chrome molybdenum steel, powder-coated
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
190/55-17
Freni
Freno anteriore
Double disc. Radially mounted four-piston brake calipers; floating brake discs.
Freno posteriore
Single disc. Two-piston brake caliper; fixed brake disc.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
