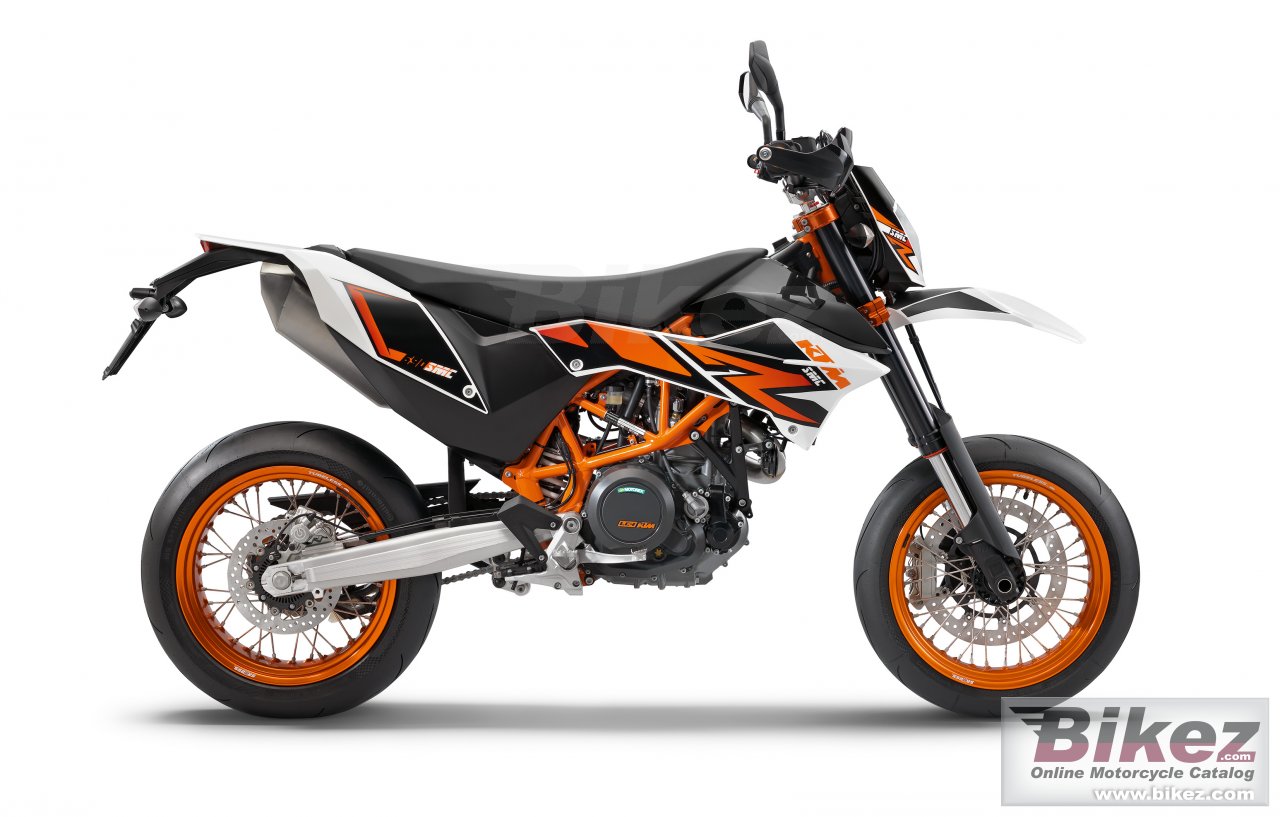

690 Smc R
Scrivi la tua esperienza su Ktm 690 Smc R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWhat isn´t there doesn´t weigh anything either - the 690 SMC R is designed according to this motto. It arrives at the starting line in peak condition in 2014 with twin plug ignition, ride-by-wire, new ABS and a revamped chassis. Powerful, sports-oriented, yet still very comfortable – what could make a drifter happier? The KTM 690 SMC R: the unrivalled Supermoto for the most demanding requirements, which leaves all others in its wake: suitable for racing or everyday use, potent design, state-of-the-art.
Informazioni generali
Categoria
Super motard
Cilindrata
690.0 cc (42.10 cubic inches)
Potenza
65.7 CV (48.0 kW))
Alesaggio x corsa
102.0 x 84.5 mm (4.0 x 3.3 inches)
Sistema di alimentazione
Injection
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Sistema di lubrificazione
Semi-dry-sump lubrication with 2 rotor pumps
Frizione
APTC Anti-hopping clutch / hydraulically operated
Trasmissione finale
5/8 x 1/4 X Ring. Primary drive: 36:79.
Inclinazione cannotto di sterzo
27.0°
Escursione anteriore
250 mm (9.8 inches)
Escursione posteriore
250 mm (9.8 inches)
Diametro
320 mm (12.6 inches)
Diametro
240 mm (9.4 inches)
Peso a secco
140.5 kg (309.7 pounds)
Rapporto potenza/peso
0.4677 CV/kg
Altezza sella
925 mm (36.4 inches) If adjustable, lowest setting.
Altezza da terra
270 mm (10.6 inches)
Interasse
1480 mm (58.3 inches)
Capacita carburante
12.00 litres (3.17 US gallons)
Colori disponibili
Nero
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down 4860 ROMA
Sospensione posteriore
WP Suspension 4618 with Pro Lever linkage
Telaio
Tipologia telaio
Tubular space frame made from chrome molybdenum steel, powder-coated
Freni
Freno anteriore
Single disc. Floating disc. Four-piston calipers. Radially mounted.
Freno posteriore
Single disc. Floating disc. Single-piston caliper.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
