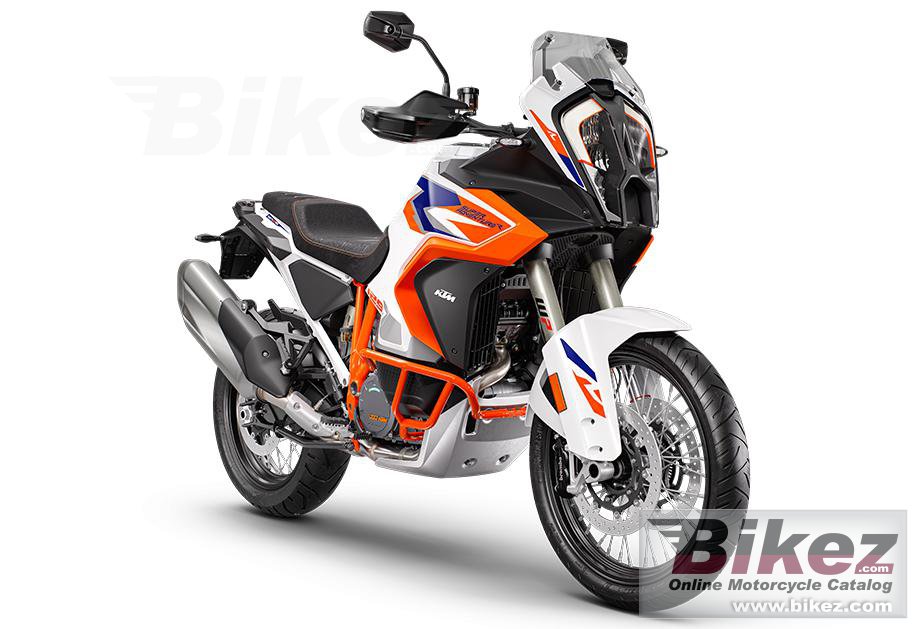

1290 Super Adventure R
Scrivi la tua esperienza su Ktm 1290 Super Adventure R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireFrom the Skeleton Coast to the Himalayas, the 1290 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself to be without peers in the large-capacity extreme adventure segment, but it also remains the ultimate READY TO RACE choice in travel machines for hardened cross-country nomads.
Informazioni generali
Tipologia
Allround
Cilindrata
1301.0 cc (79.39 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
75° V arrangement
Potenza
158.2 CV (115.5 kW))
Alesaggio x corsa
108.0 x 71.0 mm (4.3 x 2.8 inches)
Sistema di alimentazione
Injection. Keihin
Accensione
Keihin EMS with RBW and cruise control, double ignition
Sistema di lubrificazione
Forced oil lubrication with 3 pumps
Frizione
PASC slipper clutch, hydraulically actuated
Trasmissione finale
525 X-ring chain
Consumo carburante
5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Emissioni serra
132.2 CO2 g/km. (CO2 - emissione di anidride carbonica)
Inclinazione cannotto di sterzo
26.0°
Avancorsa
109 mm (4.3 inches)
Escursione anteriore
220 mm (8.7 inches)
Escursione posteriore
220 mm (8.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
267 mm (10.5 inches)
Ruote
Wire spoked
Peso a secco
221.0 kg (487.2 pounds)
Rapporto potenza/peso
0.7160 CV/kg
Altezza sella
880 mm (34.6 inches) If adjustable, lowest setting.
Altezza sella alternativa
875 mm (34.4 inches) If adjustable, highest setting.
Altezza da terra
242 mm (9.5 inches)
Interasse
1580 mm (62.2 inches)
Capacita carburante
23.00 litres (6.08 US gallons)
Capacita carburante di riserva
5.00 litres (1.32 US gallons)
Colori disponibili
White/orange/black/blue
Avviamento
Elettrico
Strumentazione
TFT Instrumentation
Fari
LED headlight
Capacita di carico
Optional side cases and top box
Motore
Coppia
138.0 Nm (14.1 kgf-m or 101.8 ft.lbs)
Sospensioni
Sospensione anteriore
WP Xplor USD Ø 48 mm
Sospensione posteriore
WP Xplor PDS shock absorber
Telaio
Tipologia telaio
Chrome-moly tubular space frame, powder-coated
Ruote
Pneumatico anteriore
90/90-21
Pneumatico posteriore
150/70-18
Freni
Freno anteriore
Double disc. ABS. Four-piston calipers. Radially mounted.
Freno posteriore
Single disc. ABS. Two-piston calipers.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
