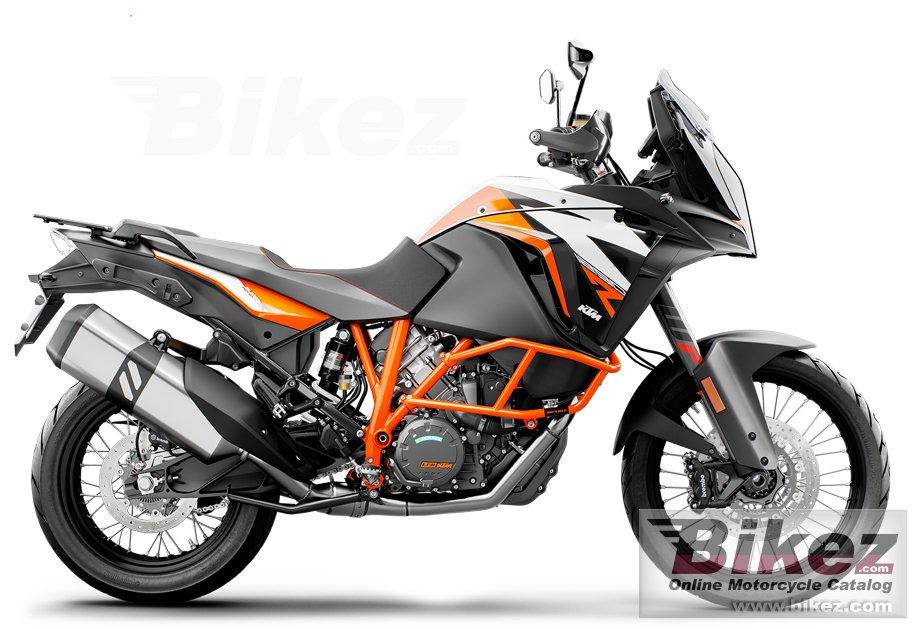

1290 Super Adventure R
Scrivi la tua esperienza su Ktm 1290 Super Adventure R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireEach adventure is a true test of man and machine. With a proven track record in the Dakar Rally, the toughest adventure of them all, KTM has gained the know-how to produce reliable powerplants that deliver top performance across a wide range of terrain.
Informazioni generali
Categoria
Allround
Cilindrata
1301.0 cc (79.39 cubic inches)
Dettagli motore
75° V arrangement
Potenza
158.2 CV (115.5 kW))
Alesaggio x corsa
108.0 x 71.0 mm (4.3 x 2.8 inches)
Sistema di alimentazione
Injection
Accensione
Keihin EMS with RBW and cruise control, double ignition
Sistema di lubrificazione
Forced oil lubrication with 3 pumps
Frizione
PASC slipper clutch, hydraulically actuated
Trasmissione finale
5/8 x 5/16 X Ring. Primary drive: 40:76.
Consumo carburante
5.52 litres/100 km (18.1 km/l or 42.61 mpg)
Emissioni serra
128.1 CO2 g/km. (CO2 - emissione di anidride carbonica)
Inclinazione cannotto di sterzo
26.0°
Escursione anteriore
220 mm (8.7 inches)
Escursione posteriore
220 mm (8.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
267 mm (10.5 inches)
Ruote
Wire psoked
Peso a secco
217.0 kg (478.4 pounds)
Rapporto potenza/peso
0.7292 CV/kg
Altezza sella
890 mm (35.0 inches) If adjustable, lowest setting.
Altezza sella alternativa
875 mm (34.4 inches) If adjustable, highest setting.
Altezza da terra
250 mm (9.8 inches)
Interasse
1580 mm (62.2 inches)
Capacita carburante
23.00 litres (6.08 US gallons)
Colori disponibili
White/orange/black
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Coppia
140.0 Nm (14.3 kgf-m or 103.3 ft.lbs)
Sospensioni
Sospensione anteriore
WP USD Ø 48 mm
Sospensione posteriore
WP Xplor PDS shock absorber
Telaio
Tipologia telaio
Chromium-Molybdenum steel trellis frame, powder coated
Ruote
Pneumatico anteriore
90/90-21
Pneumatico posteriore
150/70-18
Freni
Freno anteriore
Double disc. ABS. Four-piston calipers. Radially mounted.
Freno posteriore
Single disc. ABS. Two-piston calipers.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
