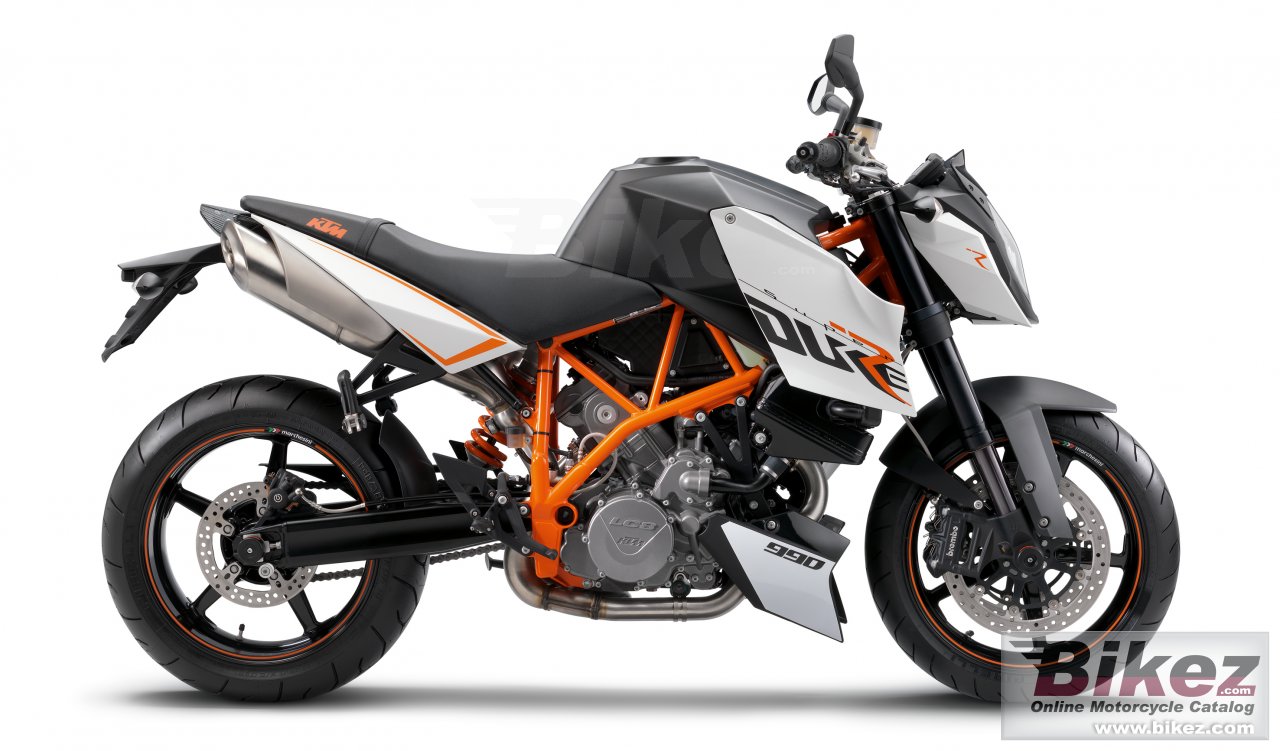

990 Super Duke R
Scrivi la tua esperienza su Ktm 990 Super Duke R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireIf there´s ever been an uncompromising riding machine in its purest form then it´s the ultra-sporty 990 Super Duke R. With its muscle-flexing V2 and perfectly controllable power, it can be regarded as the ultimate scourge of the superbikes - and now there´s room for two! Its equally manoeuvrable and precise chassis is equipped with the most exclusive components - from the CNC-machined triple clamp to the steering damper or coated fork tubes.
Informazioni generali
Categoria
Naked bike
Cilindrata
999.0 cc (60.96 cubic inches)
Dettagli motore
75° V-twin
Rapporto di compressione
11.5:1
Alesaggio x corsa
101.0 x 62.4 mm (4.0 x 2.5 inches)
Sistema di alimentazione
Injection. Keihin EFI with EPT (Electric Power Throttle)
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Sistema di lubrificazione
Dry-sump lubrication with 2 rotor pumps
Frizione
Wet multi-disc clutch / hydraulically operated
Trasmissione finale
16:38. Primary drive: 35:67
Inclinazione cannotto di sterzo
22.7°
Avancorsa
101 mm (4.0 inches)
Escursione anteriore
135 mm (5.3 inches)
Escursione posteriore
150 mm (5.9 inches)
Diametro
320 mm (12.6 inches)
Diametro
240 mm (9.4 inches)
Peso a secco
186.0 kg (410.1 pounds)
Rapporto potenza/peso
0.6613 CV/kg
Altezza sella
850 mm (33.5 inches) If adjustable, lowest setting.
Altezza da terra
150 mm (5.9 inches)
Interasse
1450 mm (57.1 inches)
Capacita carburante
18.50 litres (4.89 US gallons)
Colori disponibili
Black/white/orange
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Potenza
123.0 CV (89.8 kW)) @ 4000 giri/min
Coppia
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 giri/min
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down 4860 ROMA PA
Sospensione posteriore
WP Suspension 4618 BAVP DCC
Telaio
Tipologia telaio
Tubular space frame made from chrome molybdenum steel, powder-coated
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Double disc. Radially mounted four-piston brake calipers; floating brake discs
Freno posteriore
Single disc. Two-piston brake caliper; fixed brake disc
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
