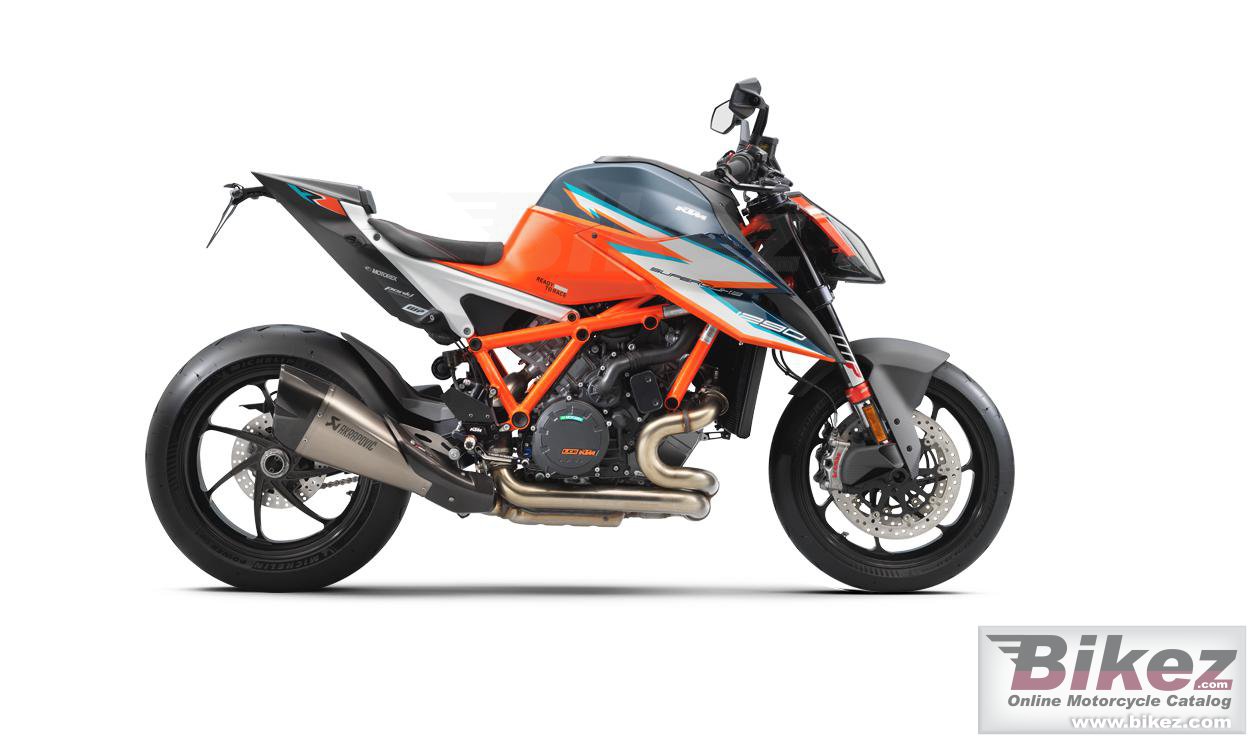

1290 Super Duke Rr
Scrivi la tua esperienza su Ktm 1290 Super Duke Rr
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireBased on the latest KTM 1290 SUPER DUKE R PROTOTYPE, the KTM 1290 SUPER DUKE RR is the very definition of READY TO RACE. 9 kilograms lighter than the standard KTM 1290 SUPER DUKE R, boasting a 1:1 power to weight ratio and ultra-exclusive, lightweight carbon fiber bodywork, the KTM 1290 SUPER DUKE RR is an all-new BEAST with an even meaner streak.
Informazioni generali
Categoria
Naked bike
Cilindrata
1301.0 cc (79.39 cubic inches)
Dettagli motore
75° V arrangement
Potenza
177.0 CV (129.2 kW))
Alesaggio x corsa
108.0 x 71.0 mm (4.3 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Keihin EMS with RBW, twin ignition
Sistema di lubrificazione
Forced oil lubrication with 3 pumps
Frizione
Slipper clutch, hydraulically actuated
Trasmissione finale
525 X-Ring chain
Consumo carburante
5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Emissioni serra
125.3 CO2 g/km. (CO2 - emissione di anidride carbonica)
Dettagli emissioni
2 catalytic converters
Inclinazione cannotto di sterzo
25.2°
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
140 mm (5.5 inches)
Diametro
320 mm (12.6 inches)
Diametro
240 mm (9.4 inches)
Ruote
Metzeler M7RR tires
Peso a secco
180.0 kg (396.8 pounds)
Rapporto potenza/peso
0.9834 CV/kg
Altezza sella
837 mm (33.0 inches) If adjustable, lowest setting.
Altezza da terra
160 mm (6.3 inches)
Interasse
1482 mm (58.3 inches)
Capacita carburante
16.00 litres (4.23 US gallons)
Colori disponibili
Black/orange/blue
Avviamento
Elettrico
Fari
LED headlight
Motore
Tipo motore
V2, four-stroke
Coppia
140.0 Nm (14.3 kgf-m or 103.3 ft.lbs)
Sospensioni
Sospensione anteriore
WP APEX PRO 7548 Closed Cartridge
Sospensione posteriore
WP APEX with Pro-Lever linkage
Telaio
Tipologia telaio
Chrome-moly tubular space frame, powder-coated
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
200/55-17
Freni
Freno anteriore
Double disc. ABS. Radially mounted four-piston brake calipers
Freno posteriore
Single disc. ABS. Two-piston brake caliper. fixed brake disc
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
