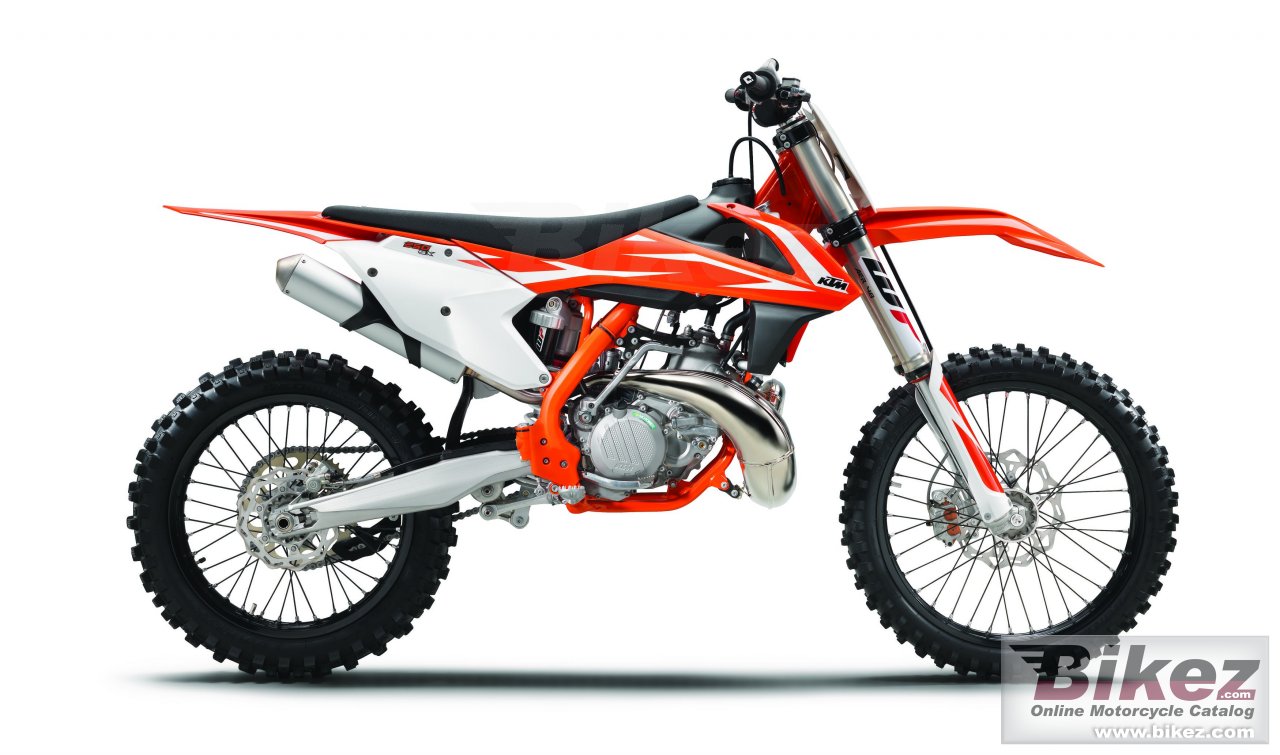

250 Sx
Scrivi la tua esperienza su Ktm 250 Sx
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe KTM 250 SX has one of the best power-to-weight ratios in the world of dirt, forming the ultimate fist against more complex 4-stroke rivals. With the grunt to devour all sorts of tracks and terrains, and a lightweight chassis keen to skim the surface, this masterpiece of KTM's R and D and Motorsport departments is born to lead the next pack of winners that prefer premix.
Informazioni generali
Tipologia
Cross / motocross
Cilindrata
249.0 cc (15.19 cubic inches)
Tipo motore
Single cylinder, two-stroke
Dettagli motore
Reed intake
Alesaggio x corsa
66.4 x 72.0 mm (2.6 x 2.8 inches)
Sistema di alimentazione
Carburettor. Mikuni TMX. Kokusan EMS.
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Frizione
Wet, DDS multi-disc clutch, Brembo hydraulics
Trasmissione finale
13:48. Primary drive: 26:72. 520 X-ring chain.
Inclinazione cannotto di sterzo
26.5°
Escursione anteriore
300 mm (11.8 inches)
Escursione posteriore
300 mm (11.8 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Ruote
CNC machined hubs. Excel rims. Wire spoked.
Peso a secco
95.4 kg (210.3 pounds)
Altezza sella
960 mm (37.8 inches) If adjustable, lowest setting.
Altezza da terra
375 mm (14.8 inches)
Interasse
1495 mm (58.9 inches)
Capacita carburante
7.00 litres (1.85 US gallons)
Colori disponibili
Orange/white/black
Avviamento
A pedale
Sospensioni
Sospensione anteriore
WP-USD, AER 48, Ø 48 mm
Sospensione posteriore
WP shock absorber with linkage
Telaio
Tipologia telaio
Chrome-molybdenum steel central-tube
Freni
Freno anteriore
Single disc. Four-piston calipers.
Freno posteriore
Single disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
