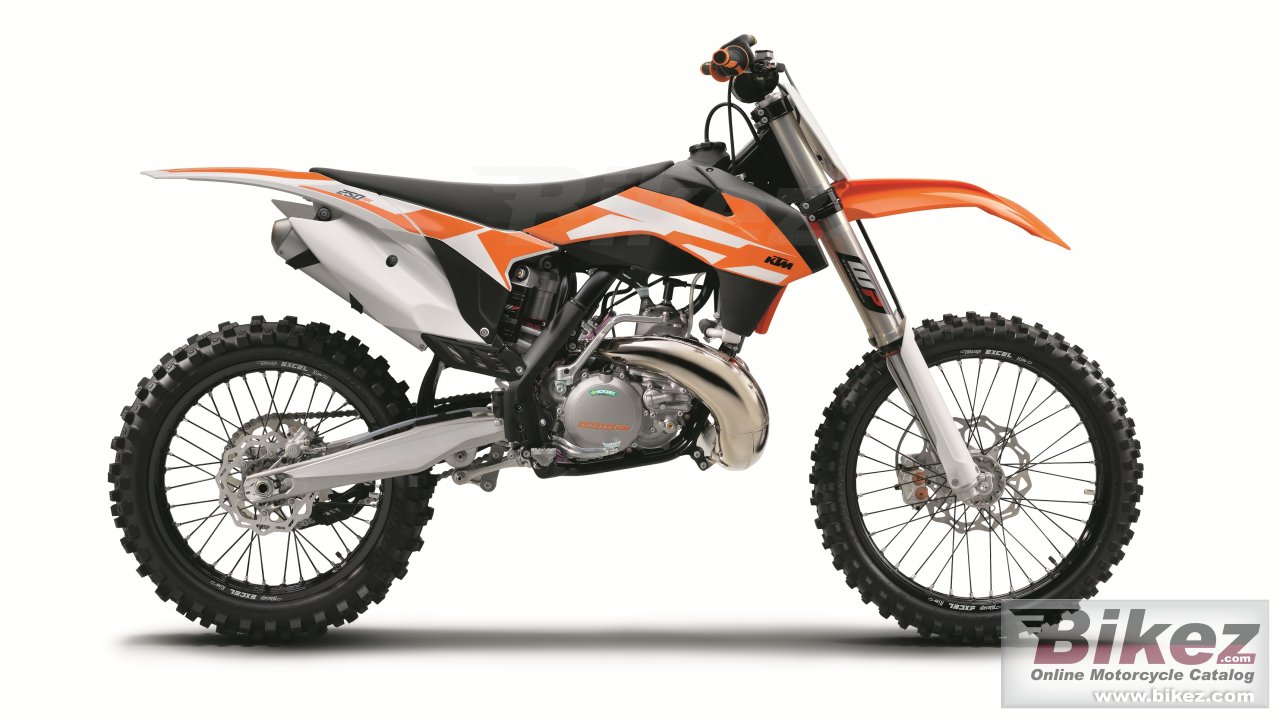

Accedi per recensireWith enough power to excel on all sorts of tracks and terrain, combined with an extremely lightweight chassis, the 250 SX has one of the best power-to-weight ratios in motocross. The unrivalled performance of the lightweight 2-stroke engine makes it a true contender against the more complex 4-strokes. For MY 2016 the 250 SX features detail improvements and new colors and graphics, but basically retains the same chassis and engine Specifica as MY 2015.
Informazioni generali
Categoria
Cross / motocross
Cilindrata
249.0 cc (15.19 cubic inches)
Dettagli motore
Reed intake.
Alesaggio x corsa
66.4 x 72.0 mm (2.6 x 2.8 inches)
Sistema di alimentazione
Carburettor. Keihin PWK 38S AG
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Frizione
Wet, DDS multi-disc clutch, Brembo hydraulics
Trasmissione finale
13:48. Primary drive: 26:72. 520 X-ring chain.
Inclinazione cannotto di sterzo
26.5°
Escursione anteriore
300 mm (11.8 inches)
Escursione posteriore
300 mm (11.8 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
95.9 kg (211.4 pounds)
Altezza sella
992 mm (39.1 inches) If adjustable, lowest setting.
Altezza da terra
385 mm (15.2 inches)
Interasse
1495 mm (58.9 inches)
Capacita carburante
7.00 litres (1.85 US gallons)
Colori disponibili
Orange/white/black
Avviamento
A pedale
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
WP USD closed cartridge Ø 48 mm
Sospensione posteriore
WP shock absorber with linkage
Telaio
Tipologia telaio
Chrome-molybdenum steel central-tube
Freni
Freno anteriore
Single disc. Four-piston calipers.
Freno posteriore
Single disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
