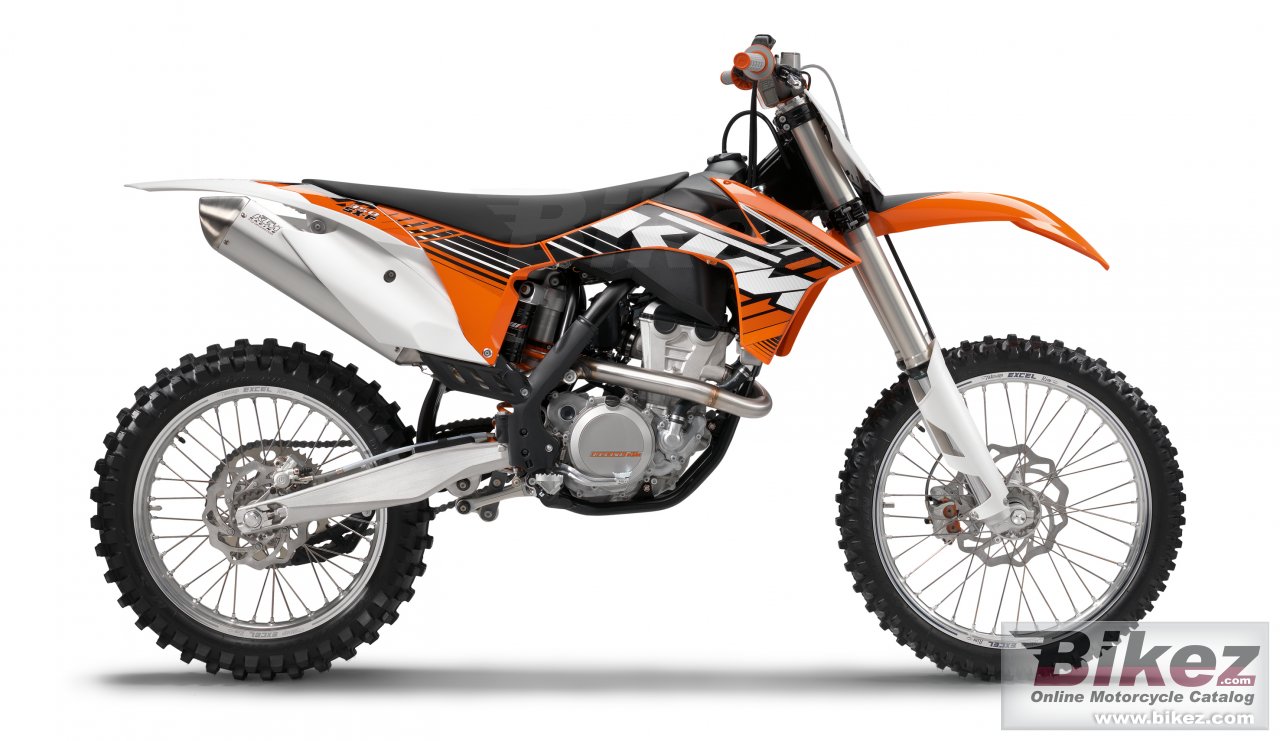

350 Sx F
Scrivi la tua esperienza su Ktm 350 Sx F
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe initial idea was to line up in the MX1 World Championship with a bike featuring reduced displacement, but all the advantages of a lighter bike. The final result was the birth of the 350 SX-F and foundations being laid for a legend. Its first victory in the first race for Toni Cairoli, and the world championship title in its first season - what better proof could there be for the brilliance of this concept?
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
349.7 cc (21.34 cubic inches)
Rapporto di compressione
13.5:1
Alesaggio x corsa
88.0 x 57.5 mm (3.5 x 2.3 inches)
Accensione
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Sistema di lubrificazione
Forced oil lubrication with 2 Eaton pumps
Frizione
Wet multi-disk clutch / hydraulically operated
Trasmissione finale
14:50. Primary drive: 24:73.
Inclinazione cannotto di sterzo
26.5°
Escursione anteriore
300 mm (11.8 inches)
Escursione posteriore
330 mm (13.0 inches)
Diametro
260 mm (10.2 inches)
Diametro
220 mm (8.7 inches)
Peso a secco
105.4 kg (232.4 pounds)
Altezza sella
992 mm (39.1 inches) If adjustable, lowest setting.
Altezza da terra
375 mm (14.8 inches)
Interasse
1495 mm (58.9 inches)
Capacita carburante
7.50 litres (1.98 US gallons)
Colori disponibili
Orange/black/white
Avviamento
Elettrico
Motore
Tipo motore
Monocilindrico, quattro tempi
Sospensioni
Sospensione anteriore
WP Suspension Up Side Down 4860 MXMA CC
Sospensione posteriore
WP Suspension 5018 BAVP DCC
Telaio
Tipologia telaio
Central tubular frame made from chrome molybdenum steel tubes
Ruote
Pneumatico anteriore
80/100-21
Pneumatico posteriore
110/90-19
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
