50 Sx Mini
Scrivi la tua esperienza su Ktm 50 Sx Mini
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.

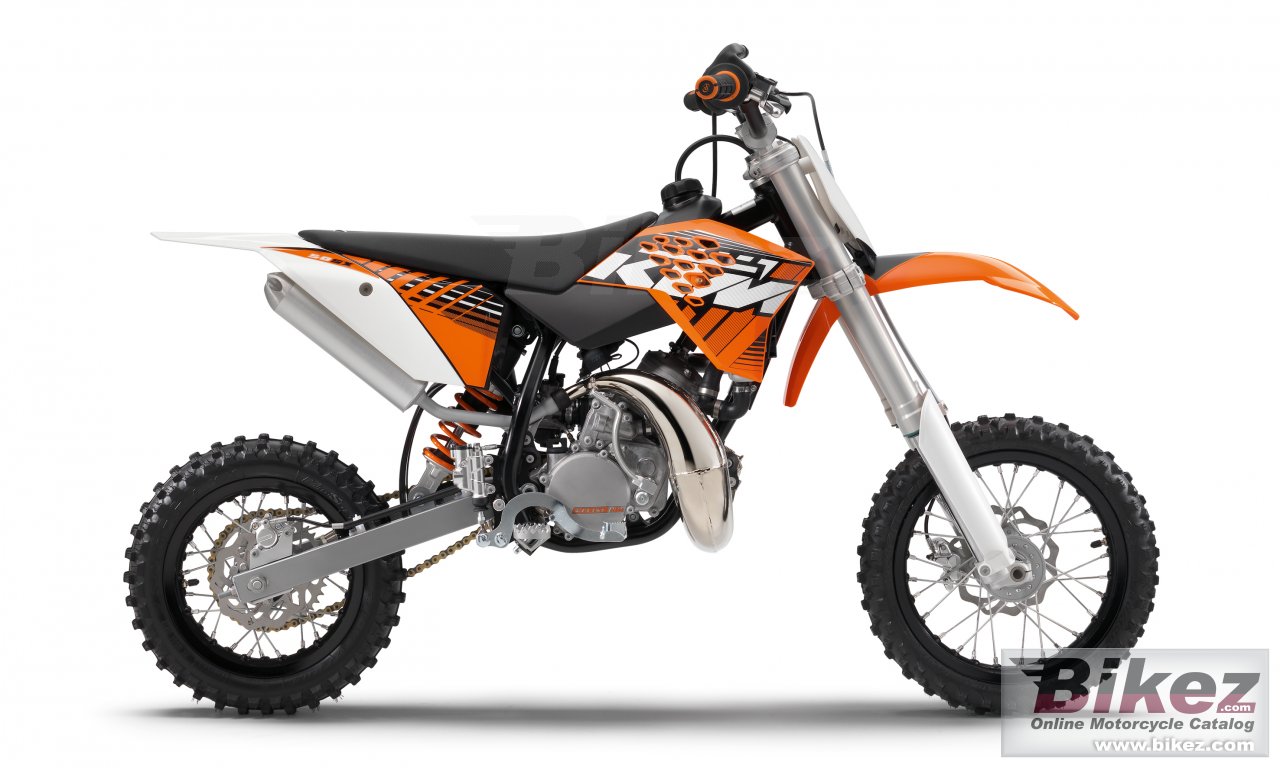

Accedi per recensireA real KTM for the smallest of future MX champions. The 40 kg (88 lb.) lightweight 50 SX Mini sets the standard in terms of controllability and riding fun. It has everything that impresses riders and reassures their parents: a high-quality chassis with easily applied rotor brakes, top-quality components wherever you look and a powerful, reliable engine with easy-to-operate centrifugal clutch.
Informazioni generali
Categoria
Minibike, cross
Cilindrata
49.0 cc (2.99 cubic inches)
Dettagli motore
Reed intake
Alesaggio x corsa
39.5 x 40.0 mm (1.6 x 1.6 inches)
Sistema di alimentazione
Carburettor
Sistema di lubrificazione
Separate lubrication
Frizione
3-lining automatic clutch on the main shaft / centrifugal force
Trasmissione finale
11:40. Primary drive: 61:33. Rigid 1-stage reduction gear.
Inclinazione cannotto di sterzo
22.6°
Escursione anteriore
100 mm (3.9 inches)
Escursione posteriore
171 mm (6.7 inches)
Diametro
160 mm (6.3 inches)
Diametro
140 mm (5.5 inches)
Peso a secco
40.5 kg (89.3 pounds)
Altezza sella
558 mm (22.0 inches) If adjustable, lowest setting.
Altezza da terra
184 mm (7.2 inches)
Interasse
914 mm (36.0 inches)
Capacita carburante
2.00 litres (0.53 US gallons)
Colori disponibili
Orange/black/white
Avviamento
A pedale
Motore
Tipo motore
Single cylinder, two-stroke
Sospensioni
Sospensione anteriore
WP Suspension USD 35
Sospensione posteriore
WP Suspension 3614 BAEM
Telaio
Tipologia telaio
Central tube frame of chrome molybdenum steel tubing, powder-coated
Freni
Freno anteriore
Single disc. Four-pot brake caliper
Freno posteriore
Single disc. Two-pot brake caliper
Trasmissione
Cambio
1 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
