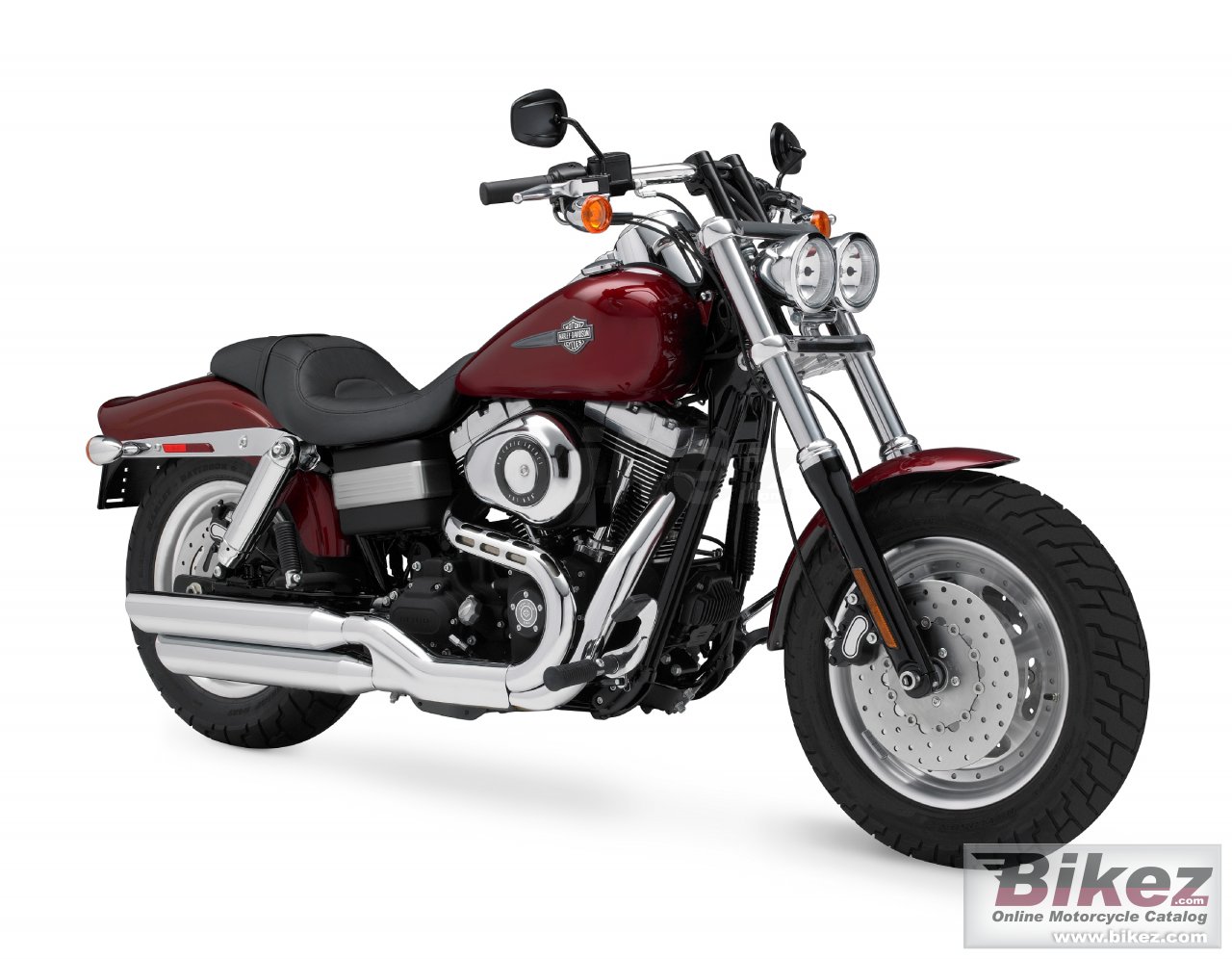

Fxdf Dyna Fat Bob
Scrivi la tua esperienza su Harley Davidson Fxdf Dyna Fat Bob
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireBlack powder-coated engine with polished treatment covers; New low-Profilo front fender; Bobtail rear fender with chrome supports; Chrome, low-Profilo fuel tank console; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, internally-wired drag handlebar; "Teardrop" air cleaner assembly; One-piece, two-up Dyna® classic seat; Black mirrors; Dual headlight; Tank medallions; Black powder-coated engine with polished treatment covers; New low-Profilo front fender; Bobtail rear fender with chrome supports; Chrome, low-Profilo fuel tank console; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, internally-wired drag handlebar; "Teardrop" air cleaner assembly; One-piece, two-up Dyna® classic seat; Black mirrors; Dual headlight; Tank medallions; Chrome covered low rear shocks with hand-adjustable preload
Informazioni generali
Categoria
Custom / cruiser
Cilindrata
1584.0 cc (96.66 cubic inches)
Rapporto di compressione
9.2:1
Alesaggio x corsa
95.3 x 111.1 mm (3.8 x 4.4 inches)
Sistema di alimentazione
Injection. ESPFI
Frizione
9-plate, wet
Impianto di scarico
Chrome, "Tommy Gun" 2-1-2 collector exhaust
Inclinazione cannotto di sterzo
29.0°
Avancorsa
117 mm (4.6 inches)
Escursione anteriore
127 mm (5.0 inches)
Escursione posteriore
79 mm (3.1 inches)
Diametro
300 mm (11.8 inches)
Diametro
292 mm (11.5 inches)
Peso a secco
305.0 kg (672.4 pounds)
Altezza sella
663 mm (26.1 inches) If adjustable, lowest setting.
Lunghezza totale
2330 mm (91.7 inches)
Altezza da terra
125 mm (4.9 inches)
Interasse
1620 mm (63.8 inches)
Capacita carburante
19.30 litres (5.10 US gallons)
Colori disponibili
Vivid Black, Black Pearl, Black Denim, Pewter Denim, Red Hot Sunglo
Avviamento
Elettrico
Modifications compared to previous model
New silver-face speedometer with range countdown; New rear shocks for improved handling.
Motore
Tipo motore
V2, four-stroke
Coppia
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 giri/min
Sospensioni
Sospensione anteriore
49mm with polished aluminium fork triple clamp
Sospensione posteriore
Fully Covered, Coil-over shock
Telaio
Tipologia telaio
Mild steel, tubular frame; rectangular section backbone
Ruote
Pneumatico anteriore
130/90-B16
Pneumatico posteriore
180/70-B16
Freni
Freno anteriore
Double disc. 4-piston
Freno posteriore
Single disc. Single piston
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
