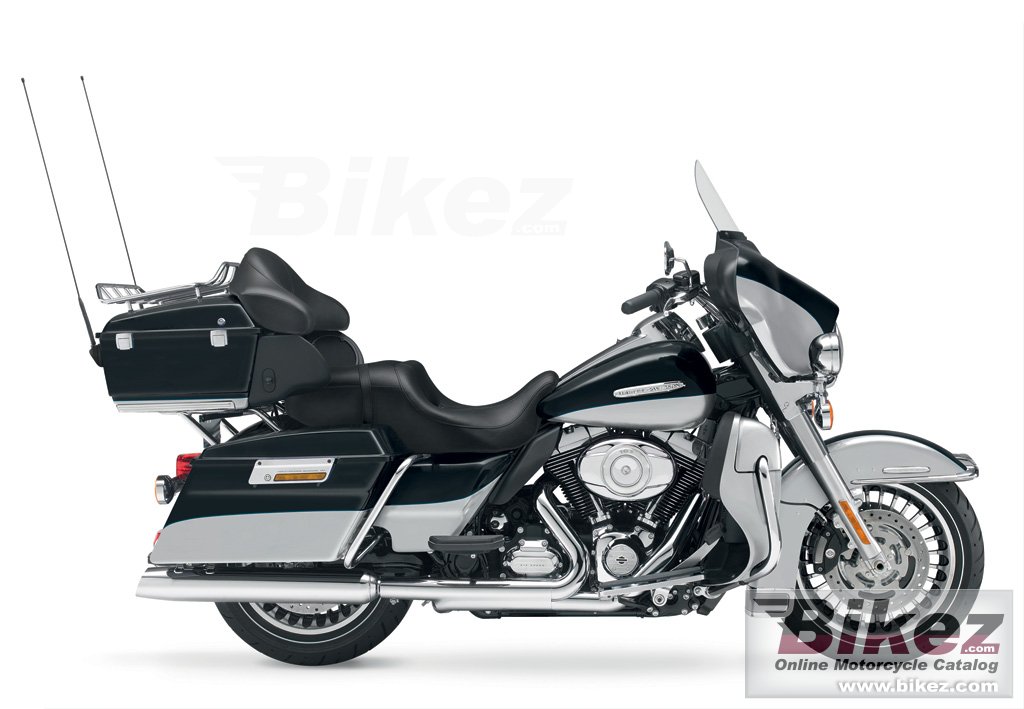

Flhtk Electra Glide Ultra Limited

Categoria

Touring

Prezzo da nuova

US$ 23799. Euro 27495. UK £ 21199. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1688.0 cc (103.00 cubic inches)

Dettagli motore

Air-cooled Twin Cam 103™ with Integrated Oil-Cooler. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifter.

Rapporto di compressione

9.6:1

Alesaggio x corsa

98.4 x 111.3 mm (3.9 x 4.4 inches)

Valvole per cilindro

2

Sistema di alimentazione

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Sistema di lubrificazione

Pressurized, dry-sump with oil cooler

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio

Consumo carburante

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Emissioni serra

129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome, 2-1-2 dual exhaust with tapered mufflers

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Escursione anteriore

117 mm (4.6 inches)

Escursione posteriore

76 mm (3.0 inches)

Diametro

300 mm (11.8 inches)

Ruote

Black and Chrome, 28-spoke Cast Aluminum

Sella

One-piece, two-up Electra Glide® classic comfort stitch seat, sculpted for added comfort and easier straddling. Passenger backrest with wrap-around armrests.

Peso a secco

388.7 kg (857.0 pounds)

Weight incl. oil, gas, etc

408.7 kg (901.0 pounds)

Altezza sella

693 mm (27.3 inches) If adjustable, lowest setting.

Lunghezza totale

2504 mm (98.6 inches)

Altezza da terra

130 mm (5.1 inches)

Interasse

1613 mm (63.5 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Vivid Black, Big Blue Pearl/Vivid Black, Ember Red Sunglo/Merlot Sunglo, Midnight Pearl/Brilliant Silver Pearl, Tequila Sunrise/H-D Orange

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light; cruise control indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Impianto elettrico

Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca

Garanzia di fabbrica

2 years, unlimited mileage.

Tipo motore

V2, four-stroke

Coppia

135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 giri/min

Sospensione anteriore

41.3 mm telescopic, triple circuit damping

Sospensione posteriore

Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.

Tipologia telaio

Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded

Pneumatico anteriore

130/80-NW17

Pneumatico posteriore

180/65-NW16

Freno anteriore

Double disc. 4-piston calipers. ABS.

Freno posteriore

Single disc. 4-piston caliper. ABS.

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Aria
