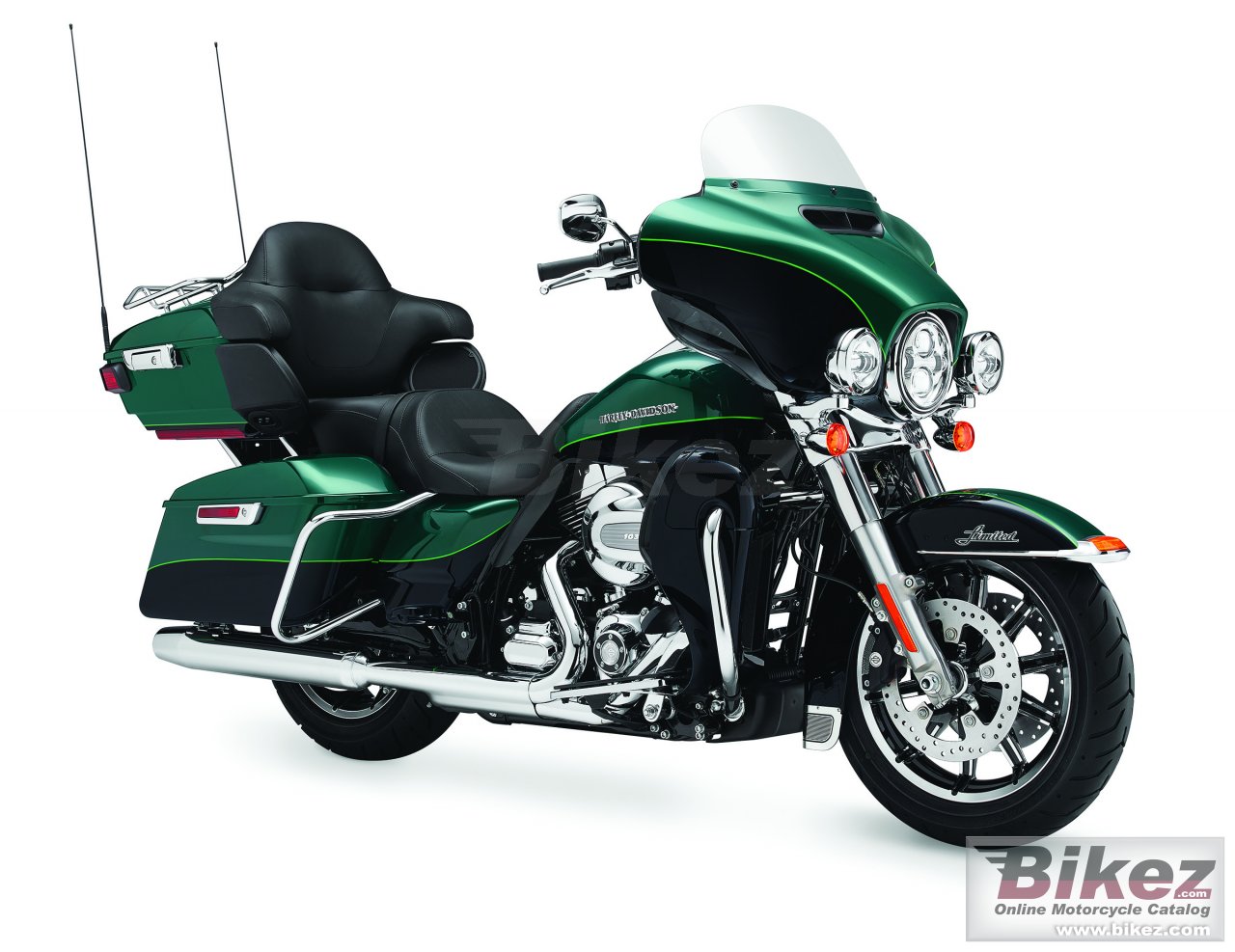

Electra Glide Ultra Limited Low

Tipologia

Touring

Prezzo da nuova

US$ 26999. Euro 28795. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1688.0 cc (103.00 cubic inches)

Tipo motore

V2, four-stroke

Dettagli motore

Air-cooled Twin Cam 103™ with Integrated Oil-Cooler

Potenza

85.8 CV (62.6 kW)) @ 5100 giri/min

Rapporto di compressione

9.7:1

Alesaggio x corsa

98.4 x 111.3 mm (3.9 x 4.4 inches)

Sistema di alimentazione

Injection. Electronic Sequential Port Fuel Injection

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Emissioni serra

129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome, 2-1-2 dual exhaust with tapered mufflers

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Black and Chrome, 28-spoke Cast Aluminum

Peso a secco

400.1 kg (882.0 pounds)

Weight incl. oil, gas, etc

413.2 kg (911.0 pounds)

Rapporto potenza/peso

0.2145 CV/kg

Altezza sella

685 mm (27.0 inches) If adjustable, lowest setting.

Lunghezza totale

2600 mm (102.4 inches)

Altezza da terra

115 mm (4.5 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Deep Jade Pearl, Brilliant Silver Pearl/Vivid Black, Mysterious Red Sunglo/Blackened Cayenne Sunglo, Vivid Black, Amber Whiskey/Vivid Black, Radioactive Green, Superior Blue, Dark Blue, Fire Engine Red, Arctic White, Cobcord Purple

Strumentazione

10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators

Fari

High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6 marce, low fuel warning, ABS

Capacita di carico

Saddle bags, top box

Coppia

138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3750 giri/min

Pneumatico anteriore

130/80-17

Pneumatico posteriore

180/65-16

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 2-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
